Product Details
＋

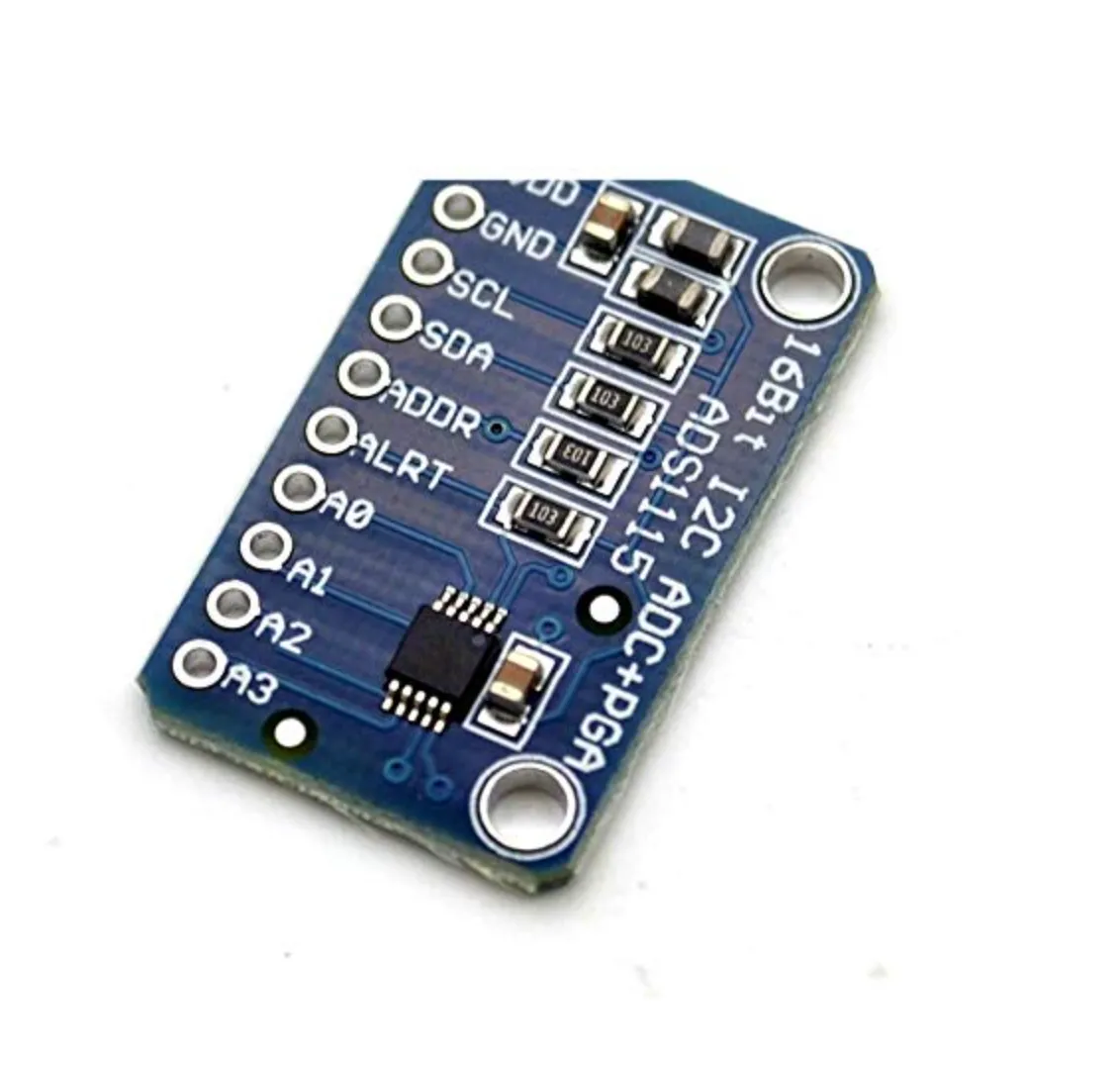

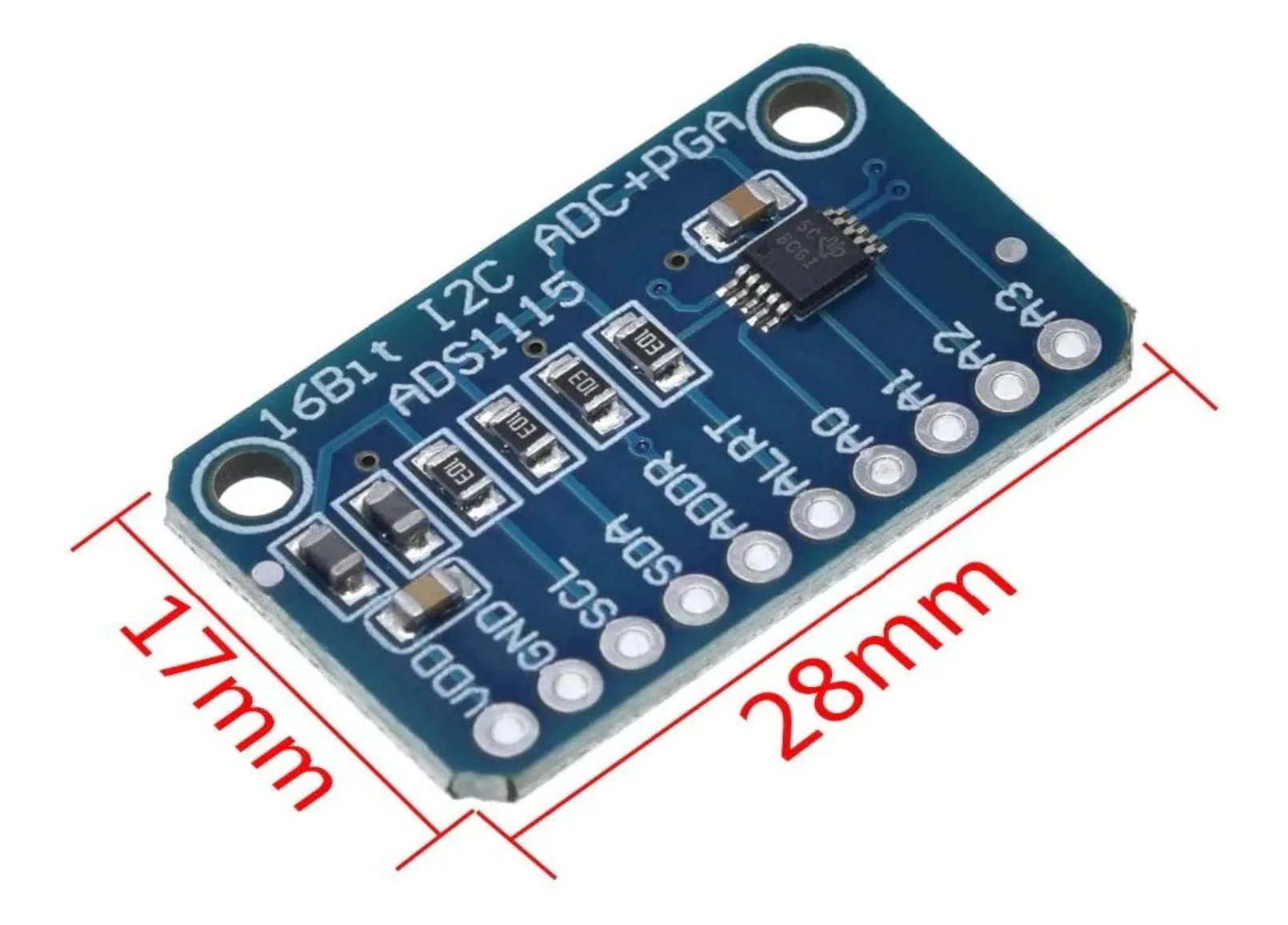

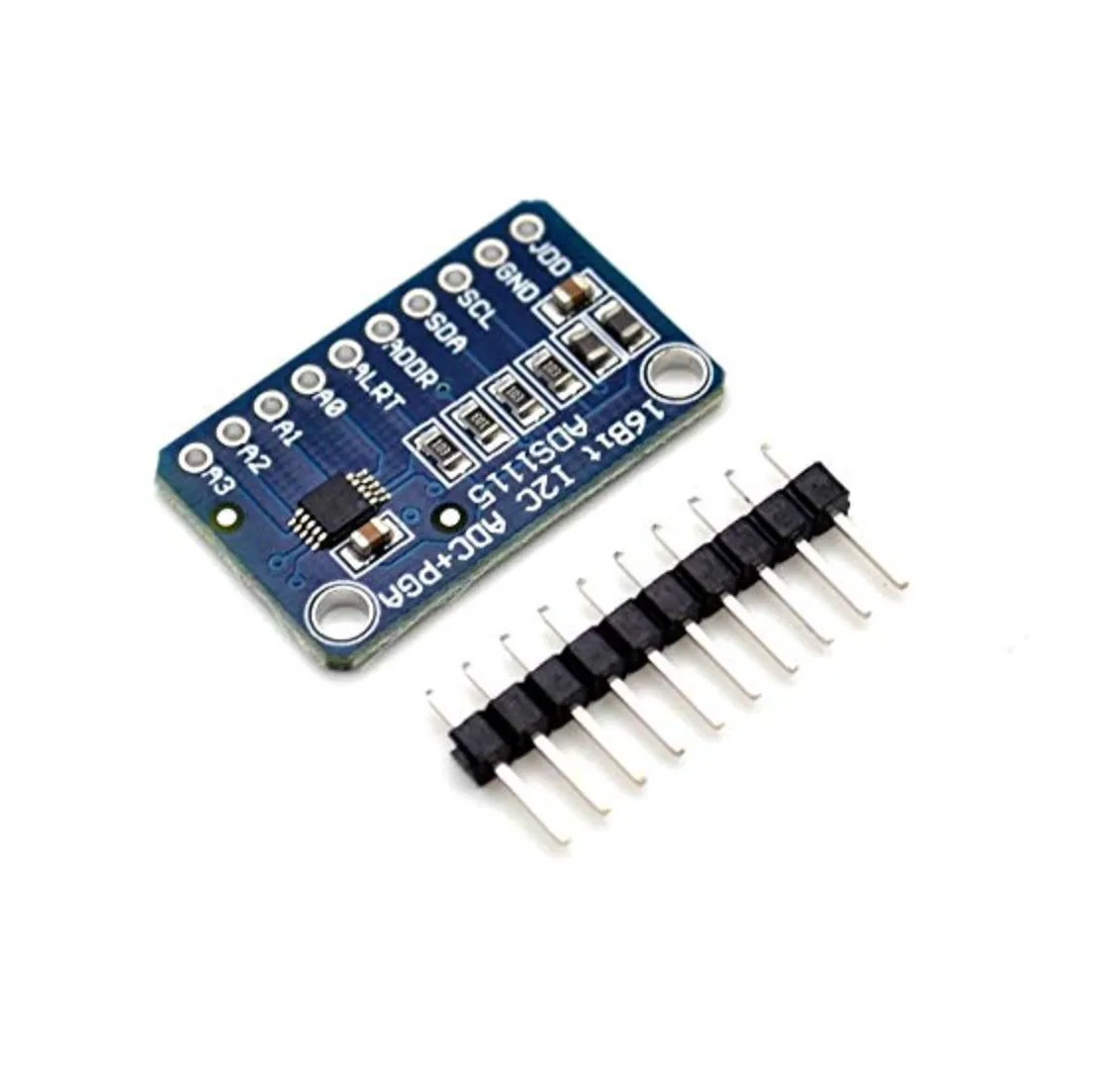

CJMCU-ADS1115 16-Bit Precision Analog-to-Digital converter ADC Module Development Board
-
PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; 8SPS to 860SPS I2C slave addresses can be selected.
- PORTABLE INSTRUMENTATION automatically powers down after a conversion and greatly reduces current consumption during idle.
- Feature:
- ADC Bit rate: 16 Bit
- Interface Type: I2C
- Channels: 4 Channel AN0 AN1 AN2 AN3
- Input voltage: 2.0v-5.5v
- Channel input voltage: 0-VDD
- Continuous Mode: Only 150μA
- Single-Shot Mode: Auto Shut Down
- Programmable data rate: 8sps-860sps
- Input range programmed control, 7 types input ranges: -0.256V ~ 0.256V, -0.512V ~ 0.512V, -1.024V ~ 1.024V, -2.048V ~ 2.048V, -4.096V ~ 4.096 V, -6.144V ~ 6.144V
- I2C 7-bit addresses between 0 x 48-0 x 4B
