Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ± 0.5% @ 25 °C |
| Current, Primary | 500 A (RMS) |
| Current, Secondary | 100 mA |
| Current, Switching | 100 mA |
| Diameter, Inner | 1.023 in. |
| For Use With | Variable speed drive for motors, welding equipment, power supply equipment, measure and control system |
| Frequency Response | 0 to 100 kHz |
| Function | Current |
| Height | 4.22" (107.2mm) |
| Length | 3.543" (89.9922mm) |
| Measurement Range | 1200 A |
| Mounting Type | Panel Mount |
| Output | Current |
| Series | |
| Supply Voltage | 24 VDC |
| Technology | Hall Effect |
| Termination | Quick Connectors |
| Type | Hall Effect |
| Width | 0.071" (1.8mm) |
Overview

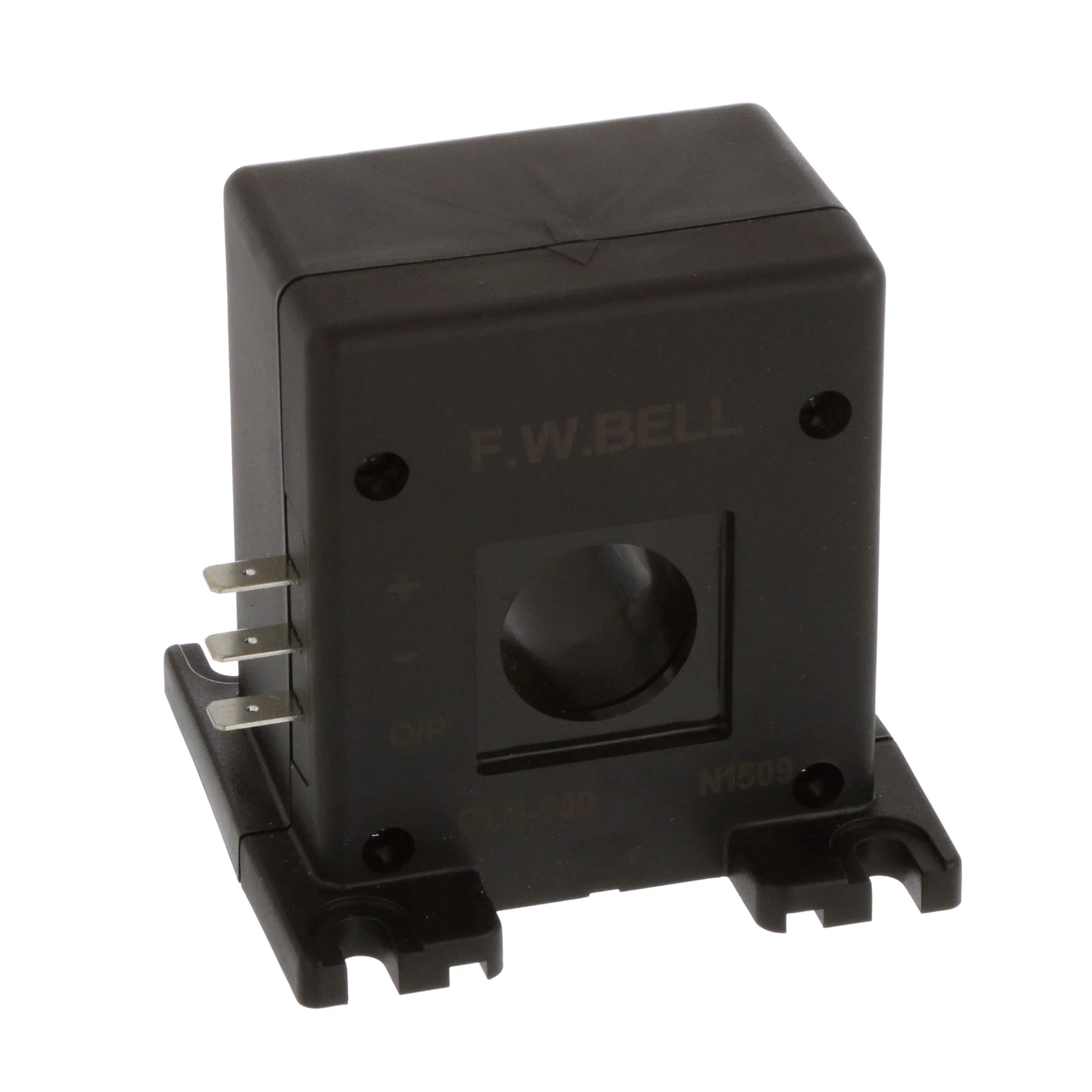

Closed Loop Hall Effect Sensor Current, 0 to 100 kHz Frequency Response, ± 0.5% @ 25 °C Accuracy
Current sensors that accurately measure DC and AC currents and provide electrical isolation between the current carrying conductor and the output of the sensor.
