Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ± 0.5 % |
| Current, Primary | 50 A (RMS) |
| Current, Secondary | 4 to 20 mA (DC) |
| Current, Switching | 20 mA |
| Diameter, Inner | 0.73 in. |
| Frequency Response | 20 to100 Hz |
| Function | Current |
| Height | 4.22" (107.2mm) |
| Length | 3.5" (88.9mm) |
| Measurement Range | 50 A |
| Mounting Type | Panel Mount |
| Output | Current |
| Series | |
| Standards | UL Listed |
| Supply Voltage | 40 VDC |
| Technology | Inductive |
| Type | Inductive |
| Width | 0.071" (1.8mm) |
Overview

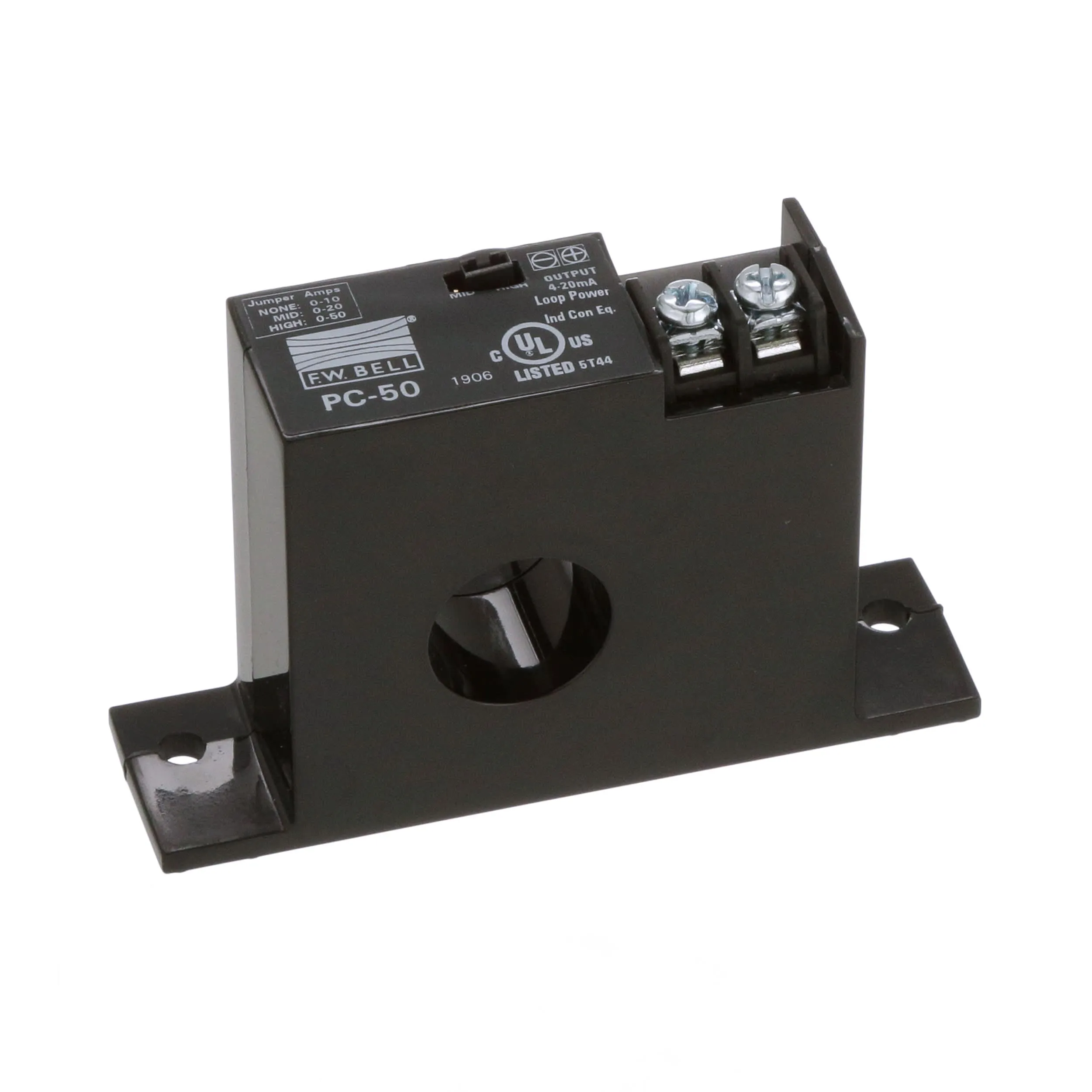

Loop powered sensors provide 4-20 mA DC output proportional to AC current. Range Selected By Jumper: PC-50/PCS-50 Ranges — 10 A, 20 A and 50 A; PC-200/PCS-200 Ranges — 100 A, 150 A and 200 A. The PCS-50 and PCS-200 clamp over existing wiring for easy installation. Simple two wire connection to computers or PLCs.
