Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Input | -180 — 1372 (Type K) °C, -100 — 1200 (Type J) °C |
| Input Type | Temperature |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -25 °C |
| Mounting Type | DIN Rail |
| Output | 0 — 10 V, 0 — 20 mA |
| Output Type | Current |
| Series |
Overview
The 3000 series gives you high accuracy, fast response time and low temperature drift – without compromise. All 6 mm devices can be mounted on a standard DIN rail or power rail with no air gap separation.

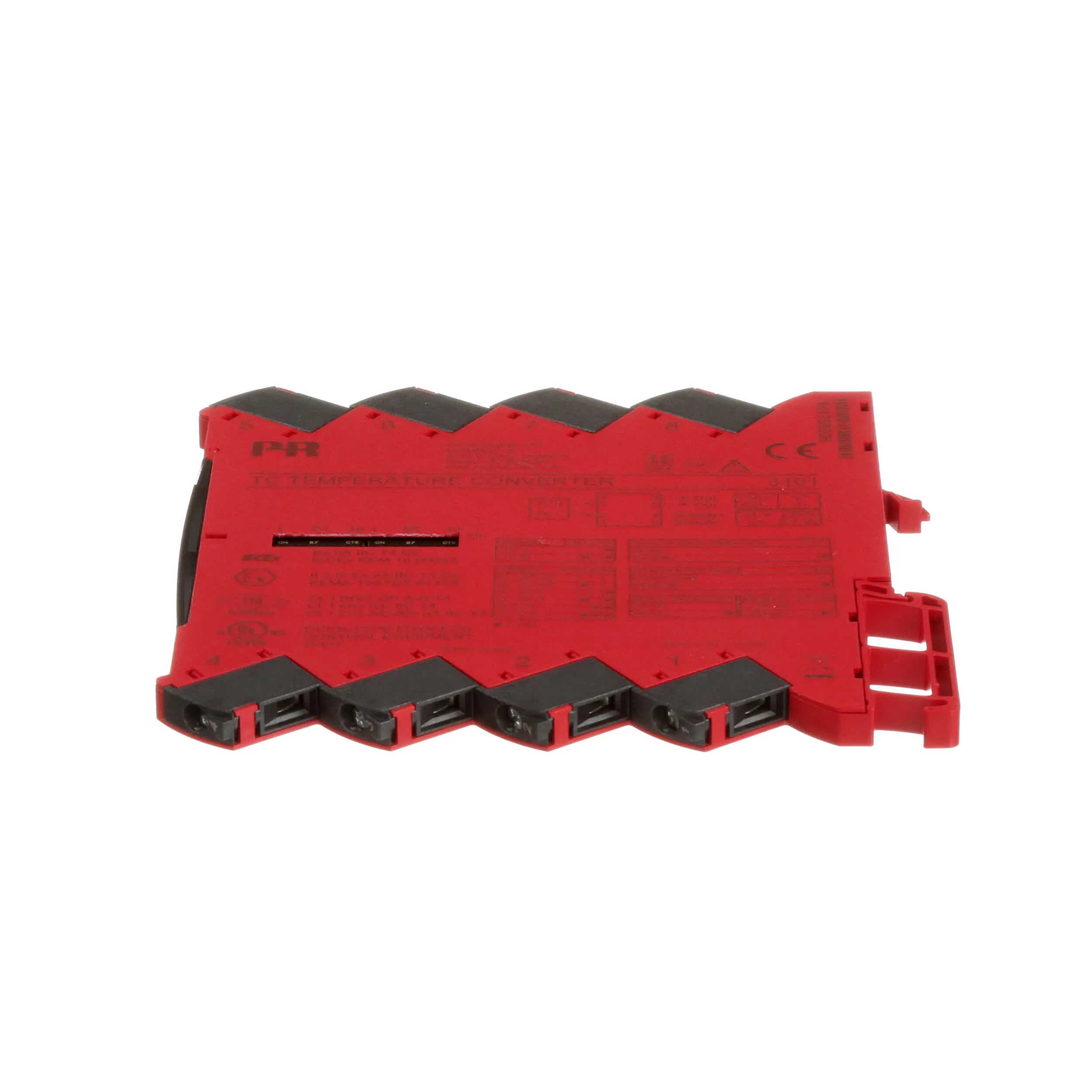

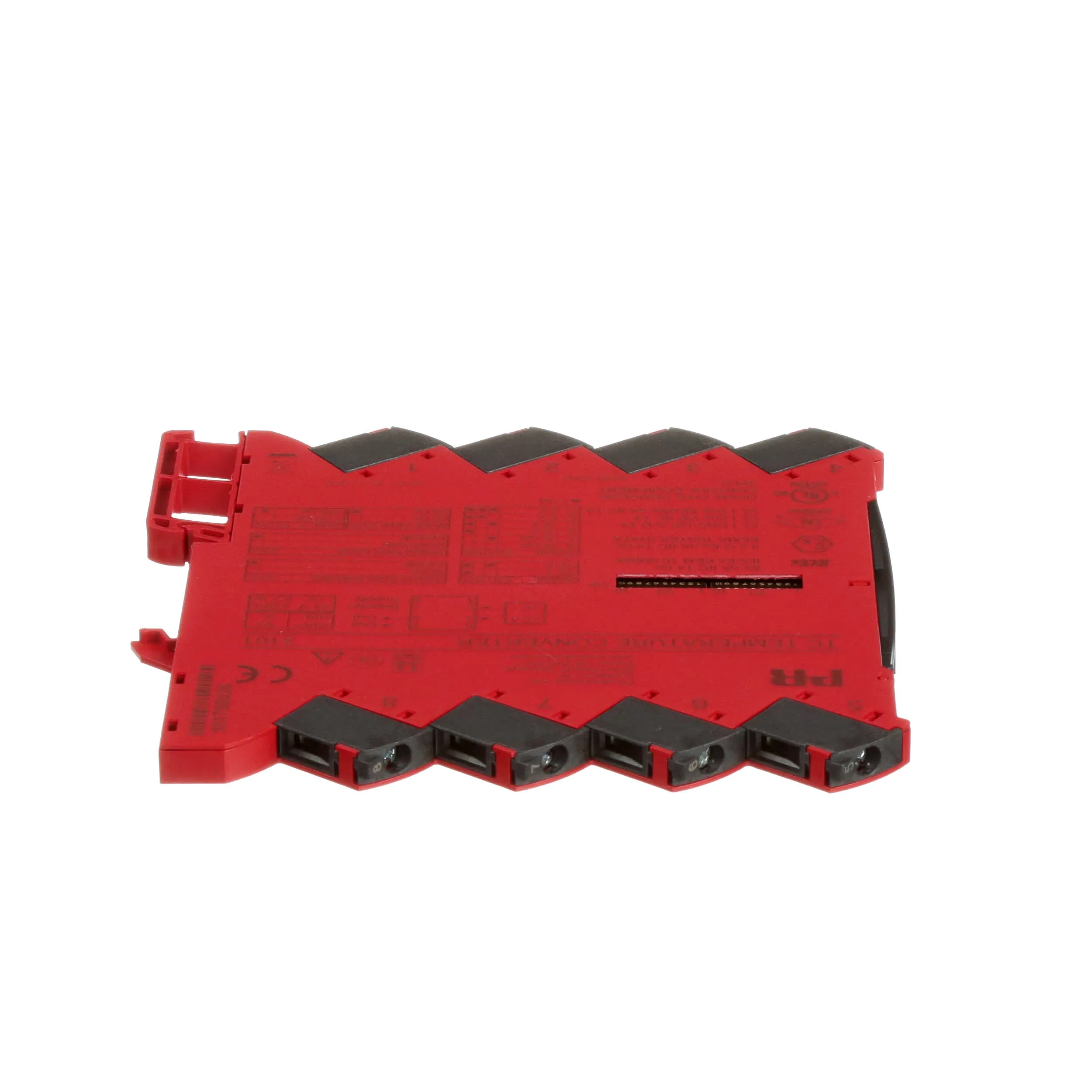

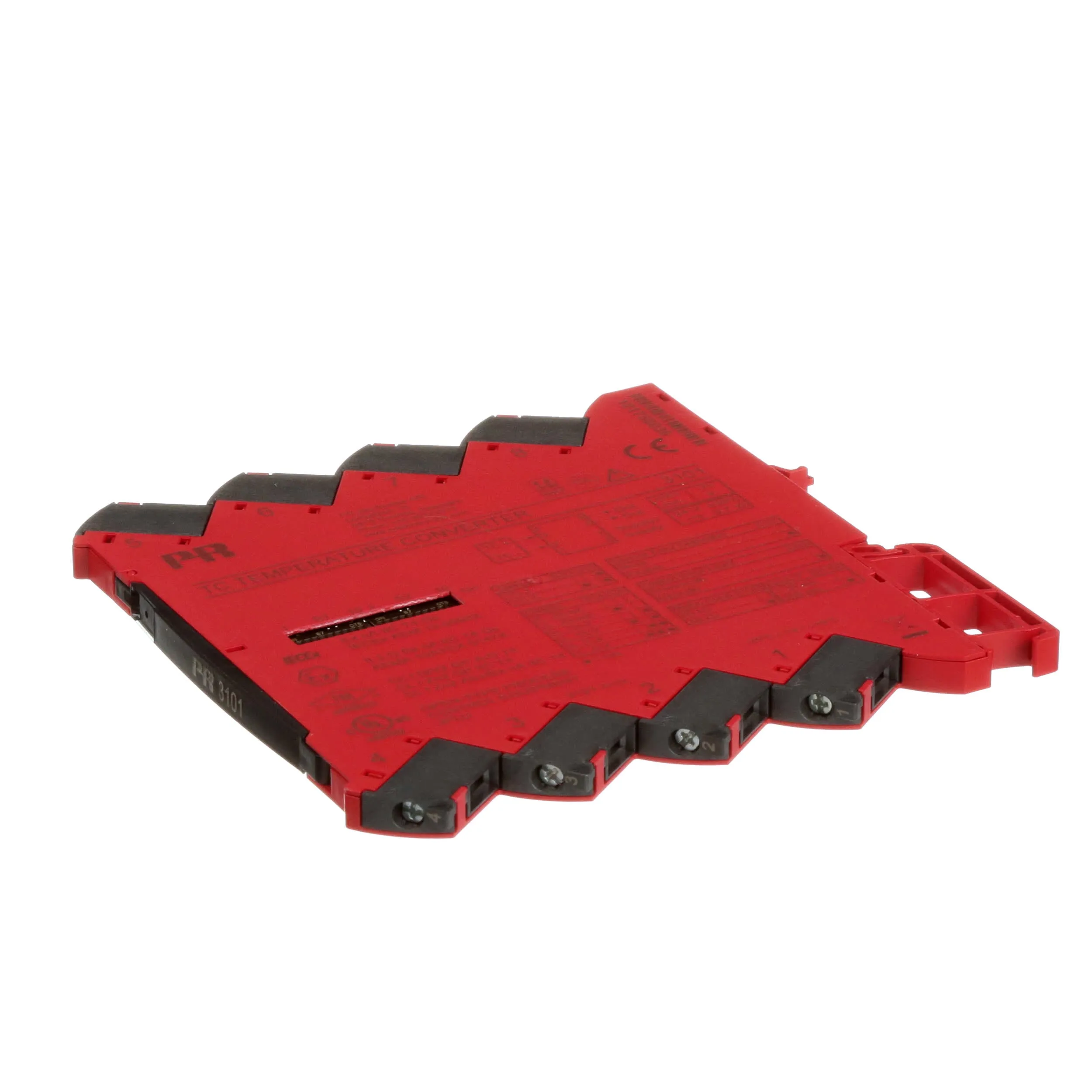

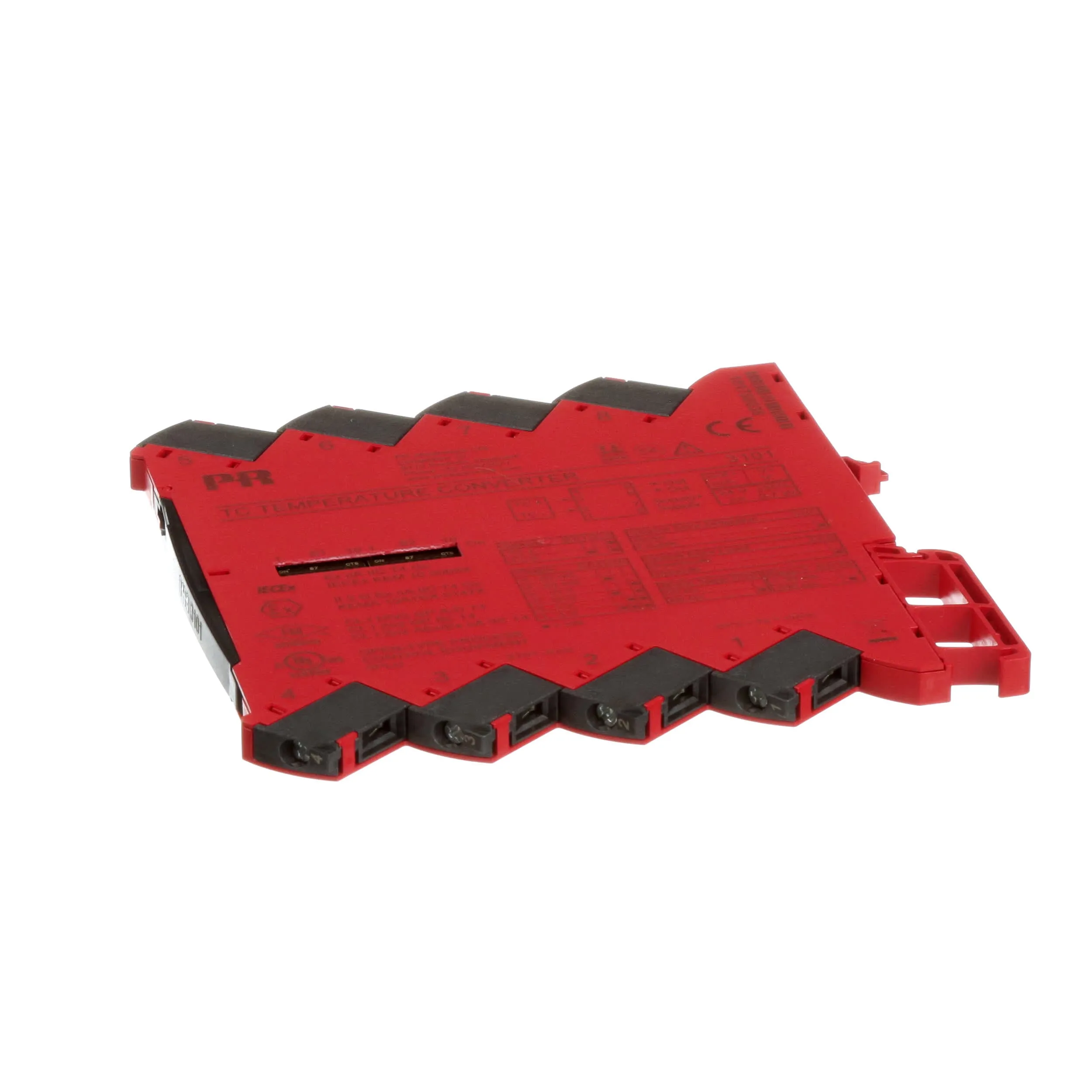

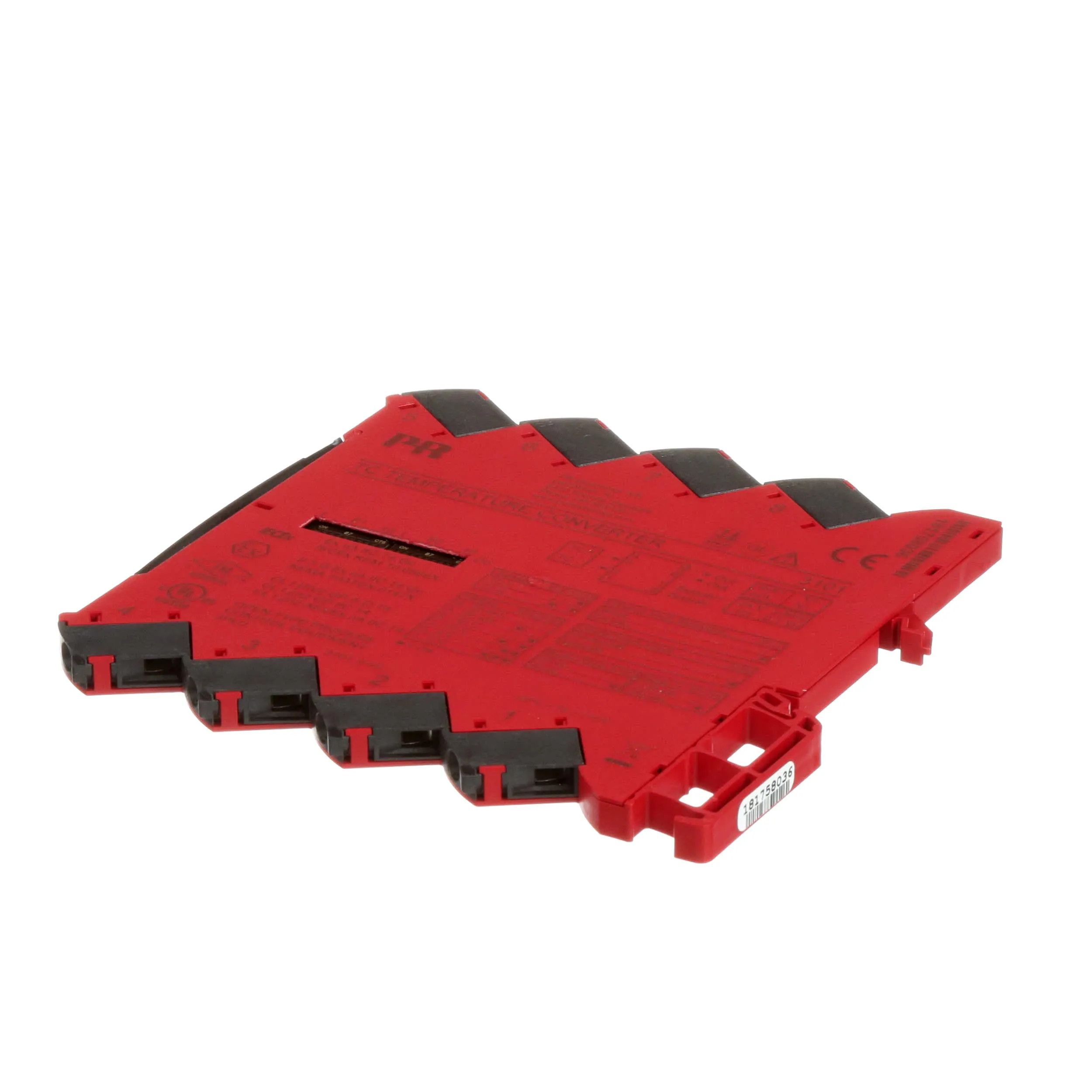

The 3101 temperature converter measures standard TC J and K temperature sensors, and provides an analog voltage or current output. The 3101 can be mounted in the safe area or in Zone 2 / Division 2 areas
Features:
