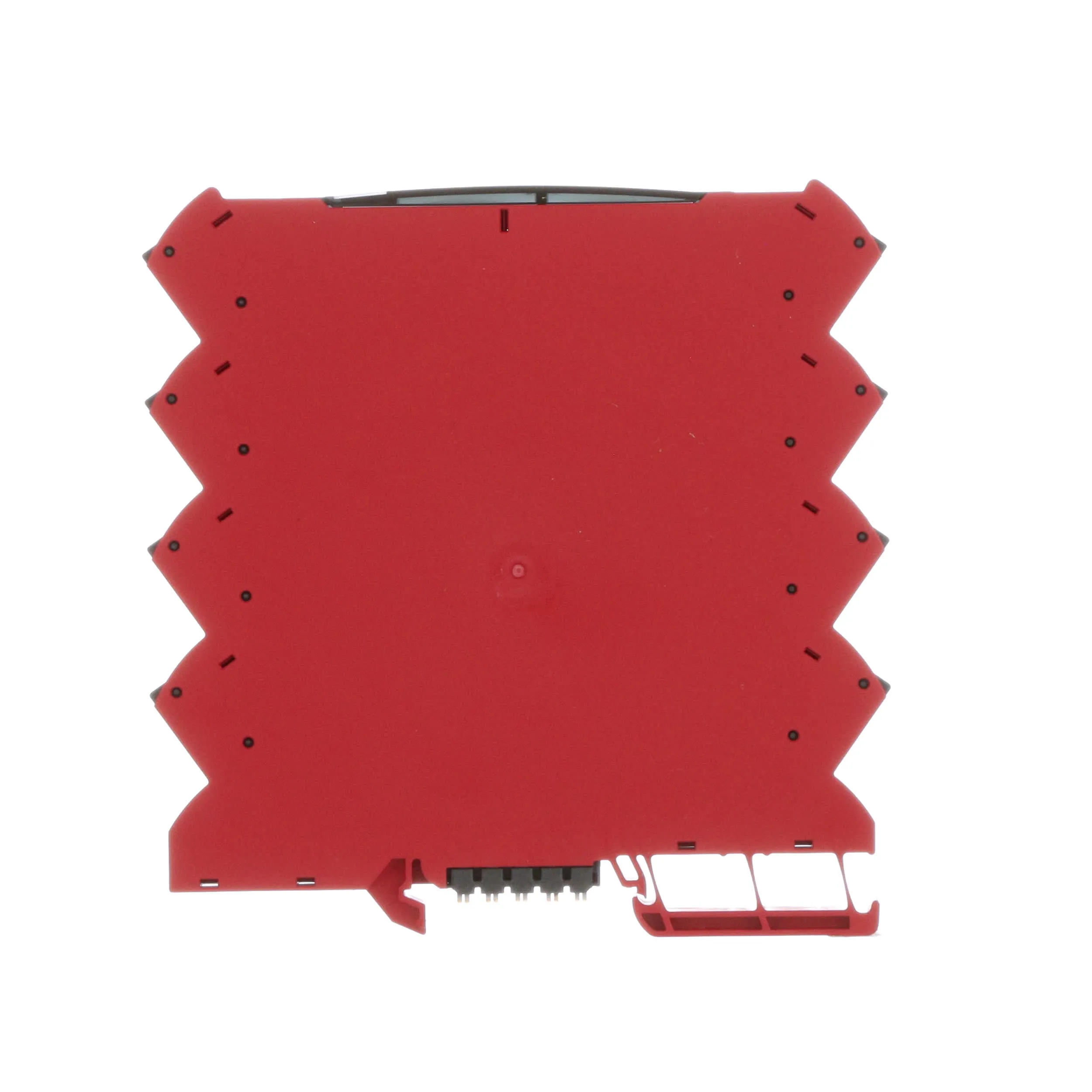

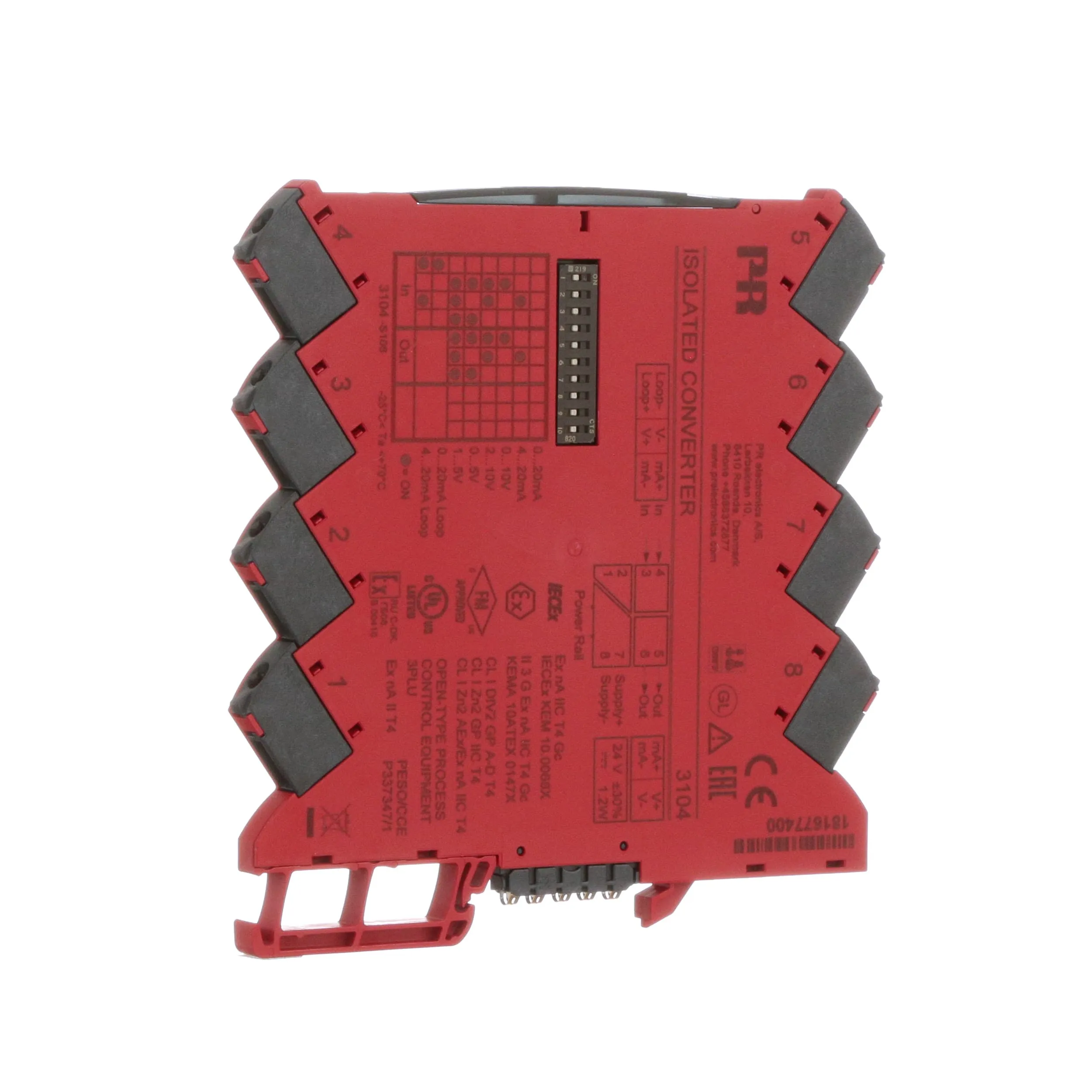

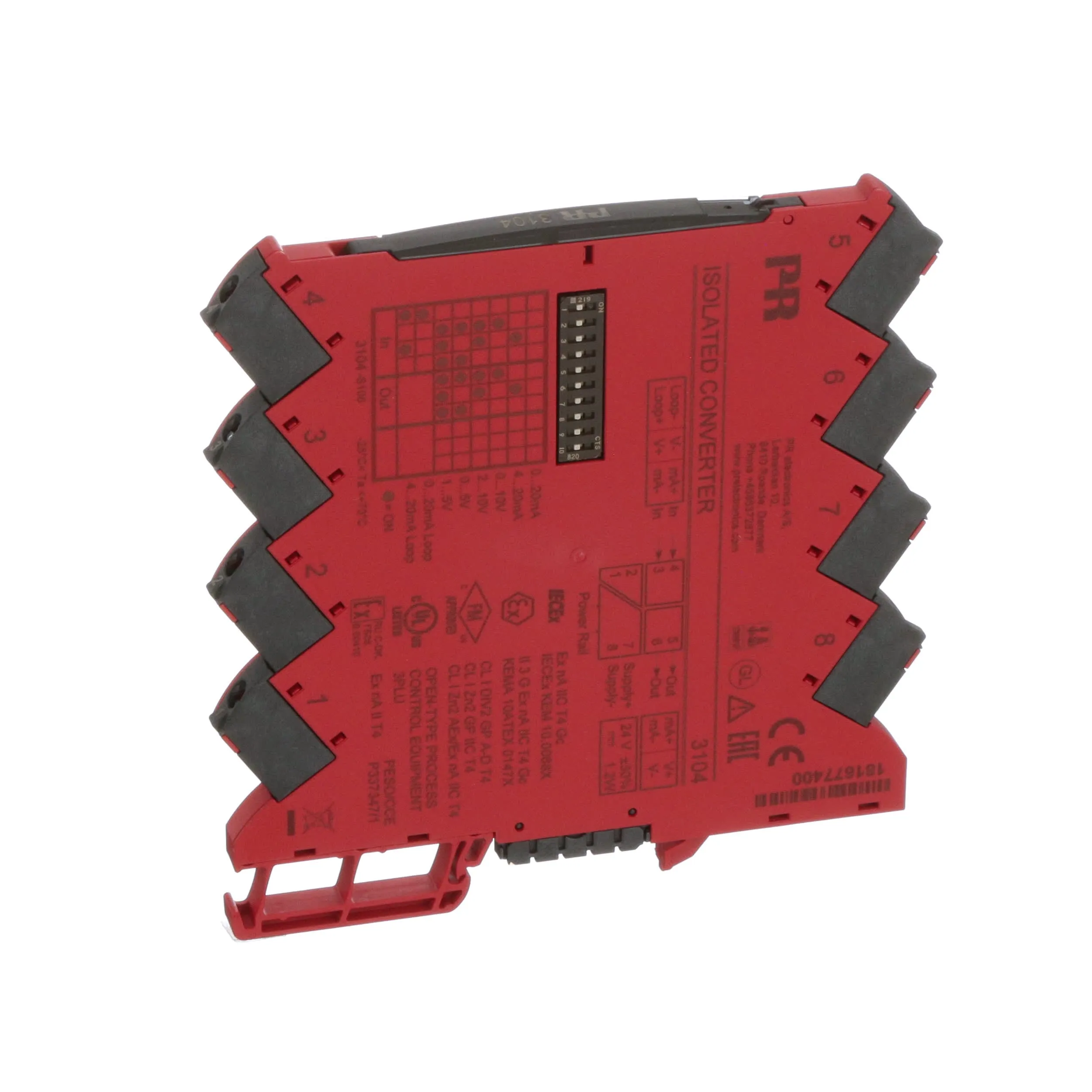

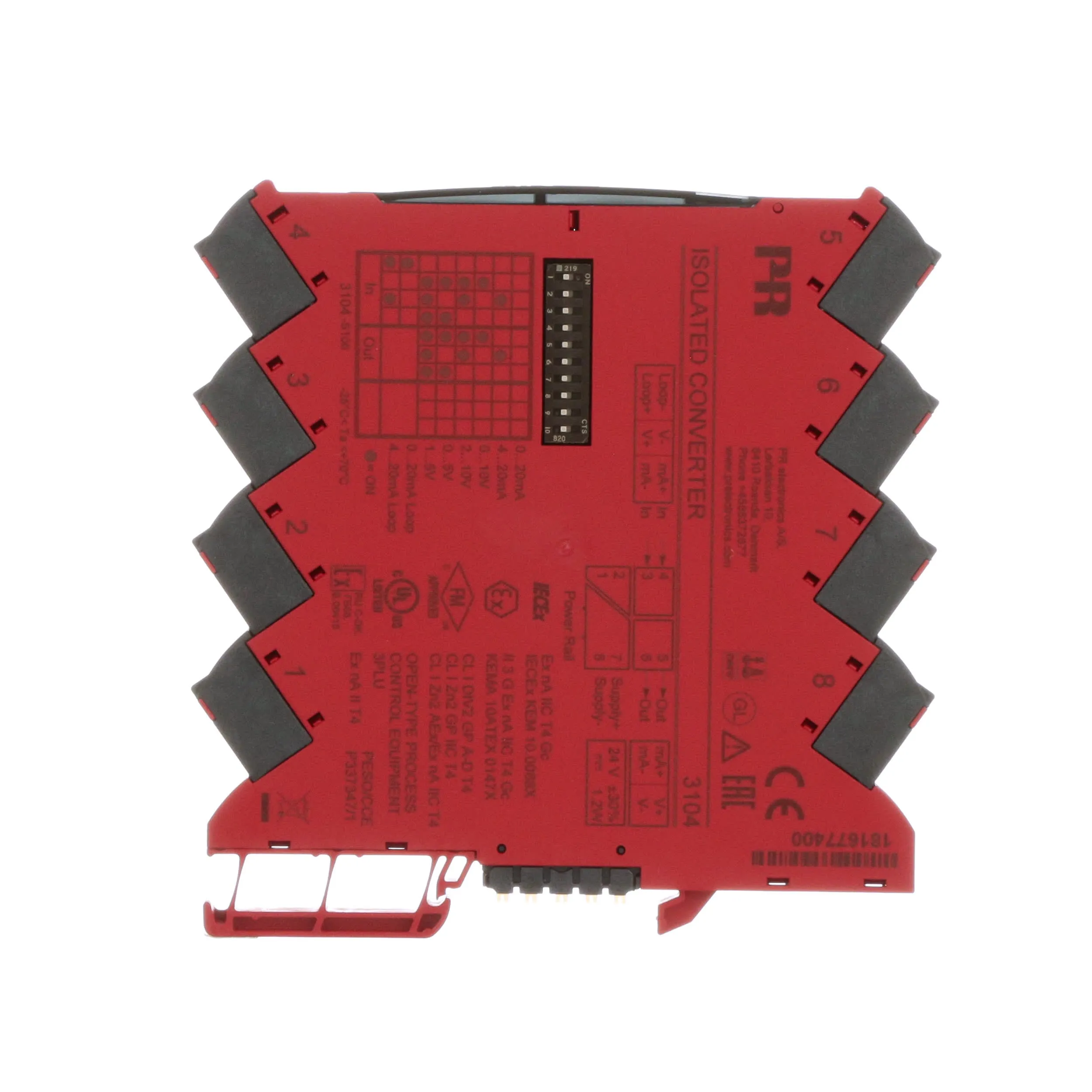

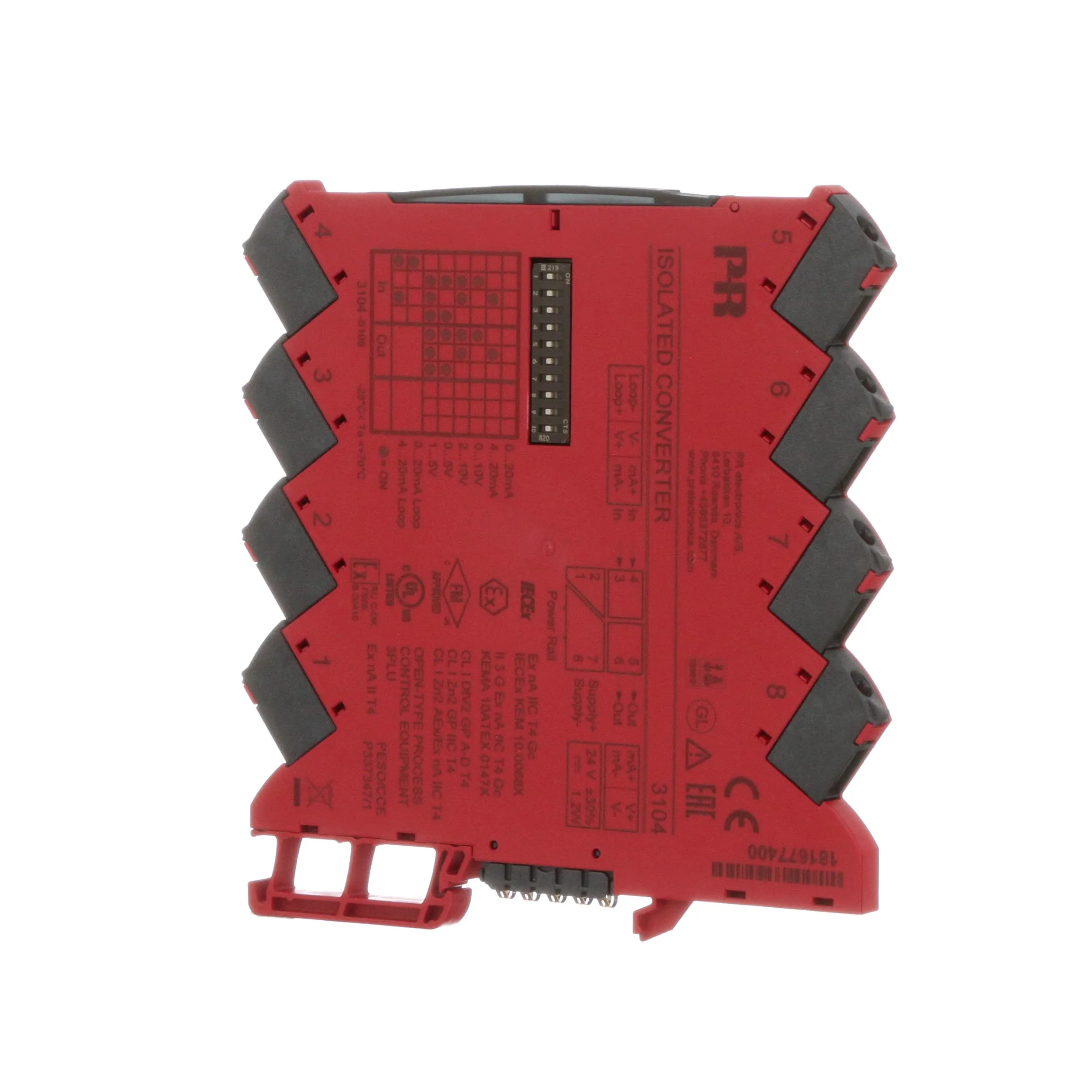

Name: PR Electronics 3104
SKU: 881828

Product Details ＋

Product Attribute	Attribute Value
Input	0 — 10.25 V, 0 — 20.5 mA
Input Type	Analog
Maximum Operating Temperature	70 °C
Minimum Operating Temperature	-25 °C
Mounting Type	DIN Rail
Output	0 — 10 V dc, 0 — 20.5 mA
Output Type	Current
Series

Overview

The 3000 series gives you high accuracy, fast response time and low temperature drift – without compromise. All 6 mm devices can be mounted on a standard DIN rail or power rail with no air gap separation.
The 3101 temperature converter measures standard TC J and K temperature sensors, and provides an analog voltage or current output. The 3101 can be mounted in the safe area or in Zone 2 / Division 2 areas

Features:

Low power consumption of 0.52…1.2 W

Flexible 24 VDC power supply or loop-powered

Fast response time < 5 / < 7 ms (mA/V) / 30 ms (temp.)

Wide ambient temperature range of -25oC to 70oC

DIP switch configured devices: >1000 combinations @ temperature input

Stacks both vertically and horizontally with no air gap

Exceptional 0.05% accuracy

Tested to 2.5 kVAC isolation level

Long term accuracy better than 0.1% / 3 years

Polarity-protected terminals

NAMUR NE21 Burst A criteria < 1%

3113 and 3337 features HART communication
