Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1487 |
| Connection Type | Miniature Plug |
| Insulation Color | Green/White |
| Insulation Material | Teflon |
| Jacket Color | Green |
| Length, Wire | 3.3 ft (1m) |
| Maximum Operating Temperature | 500 F (260 C) |
| Minimum Operating Temperature | -103 F (-75 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027632 |
Overview

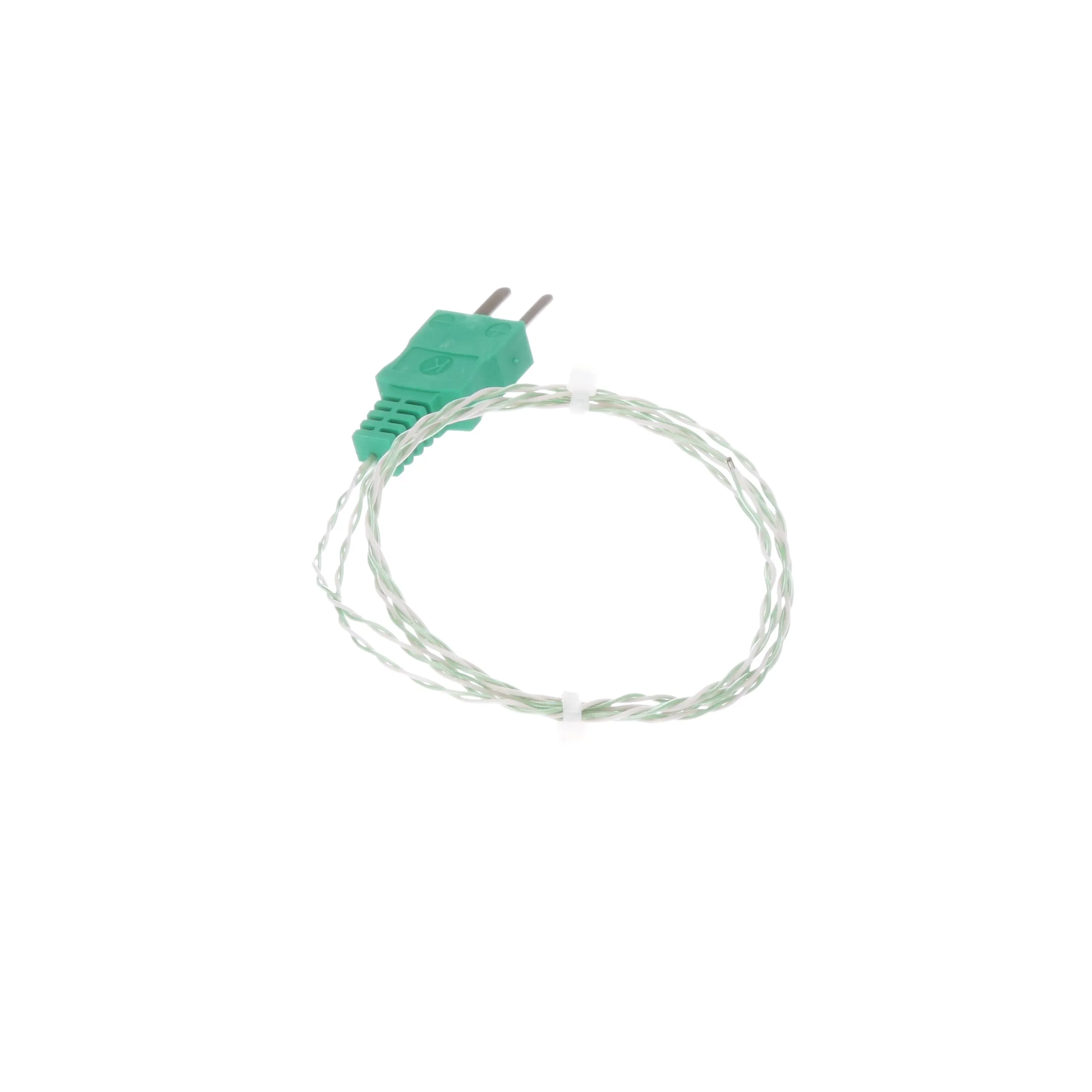

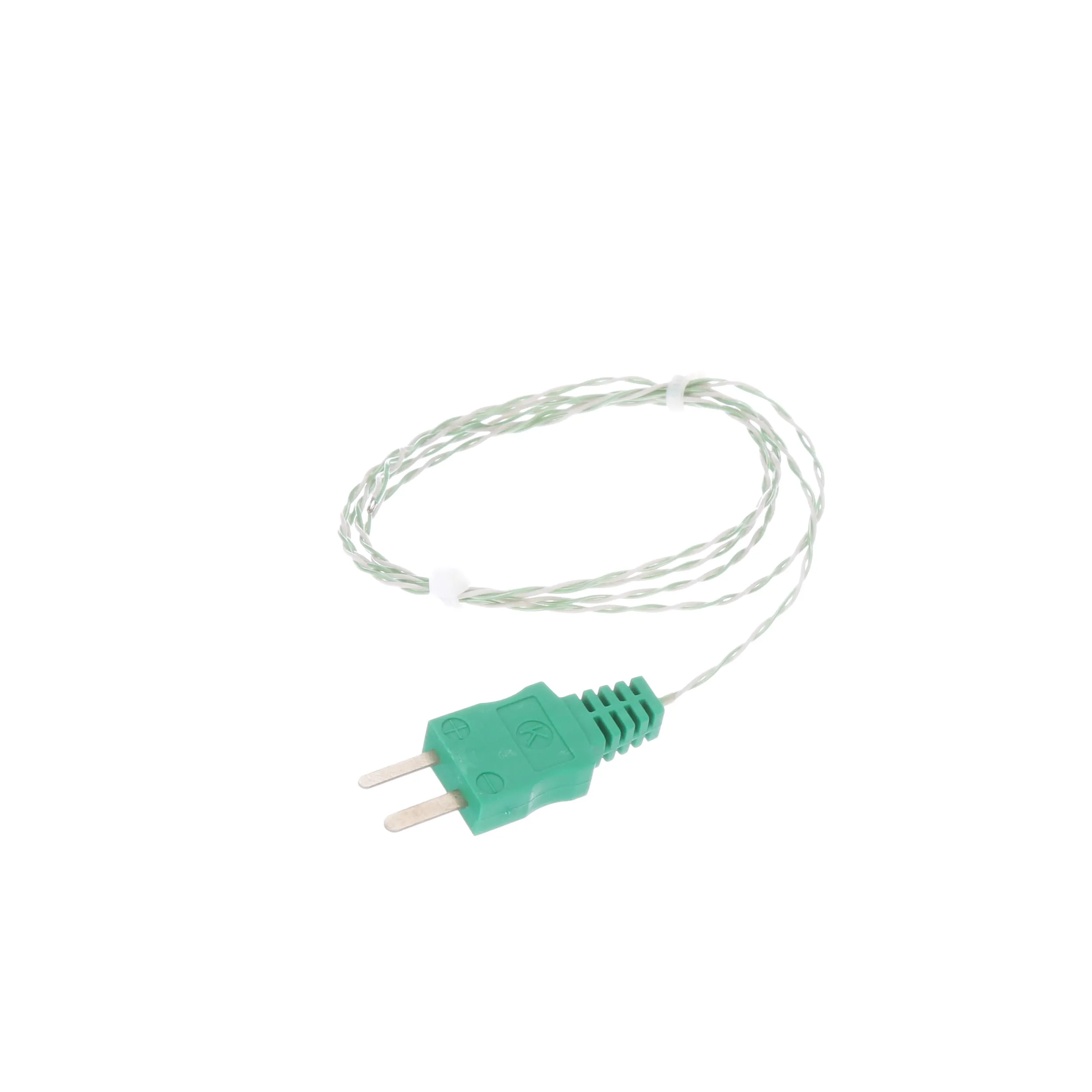

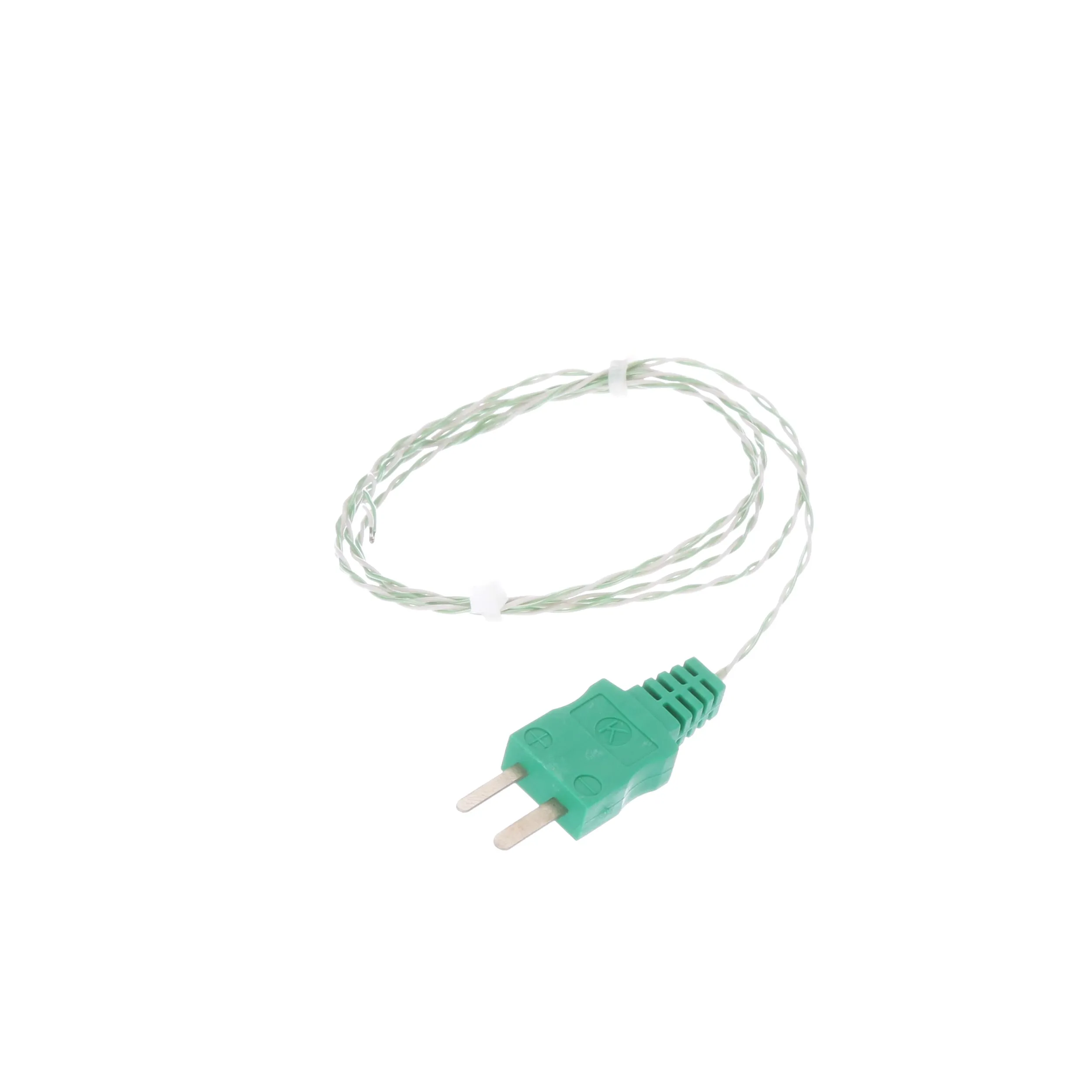

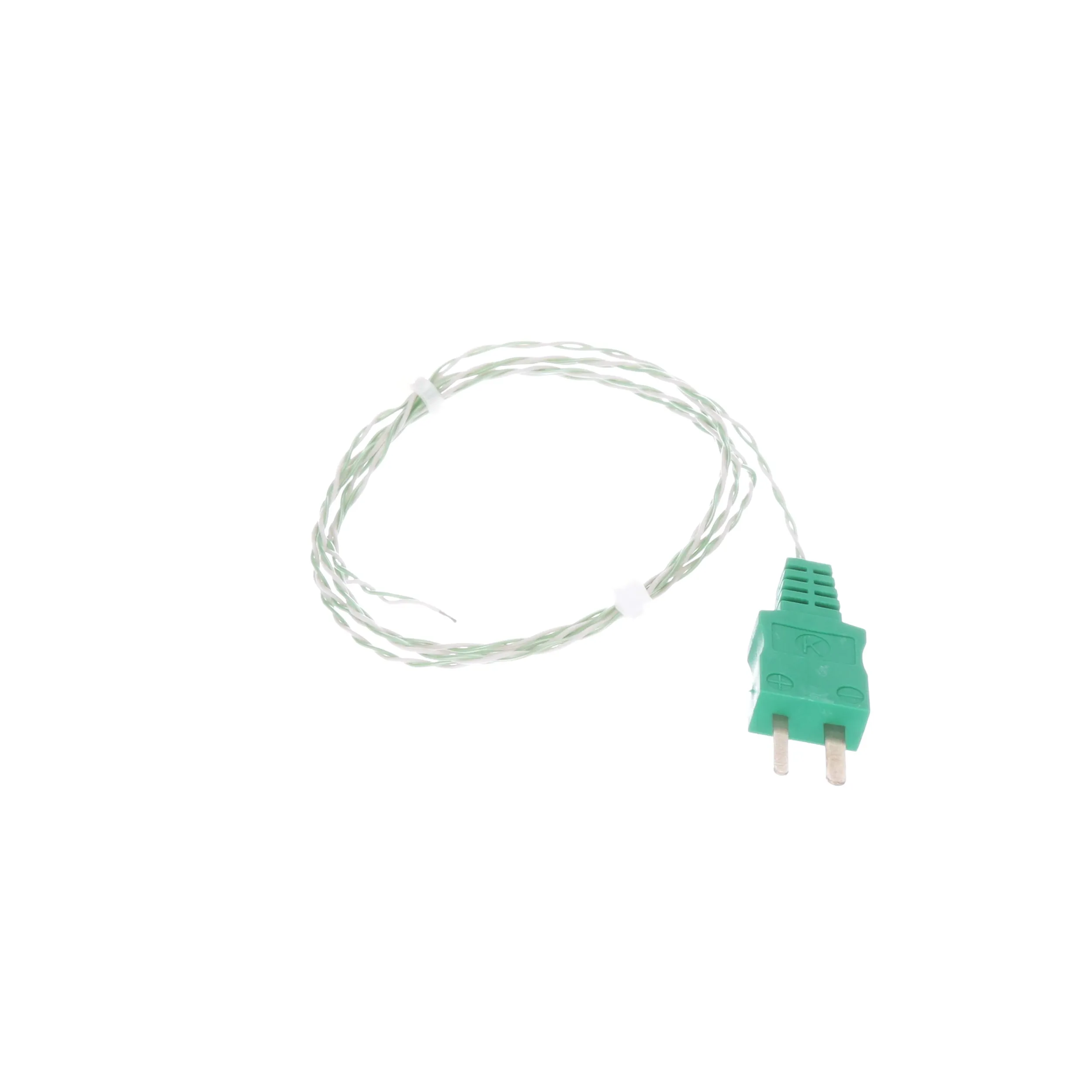

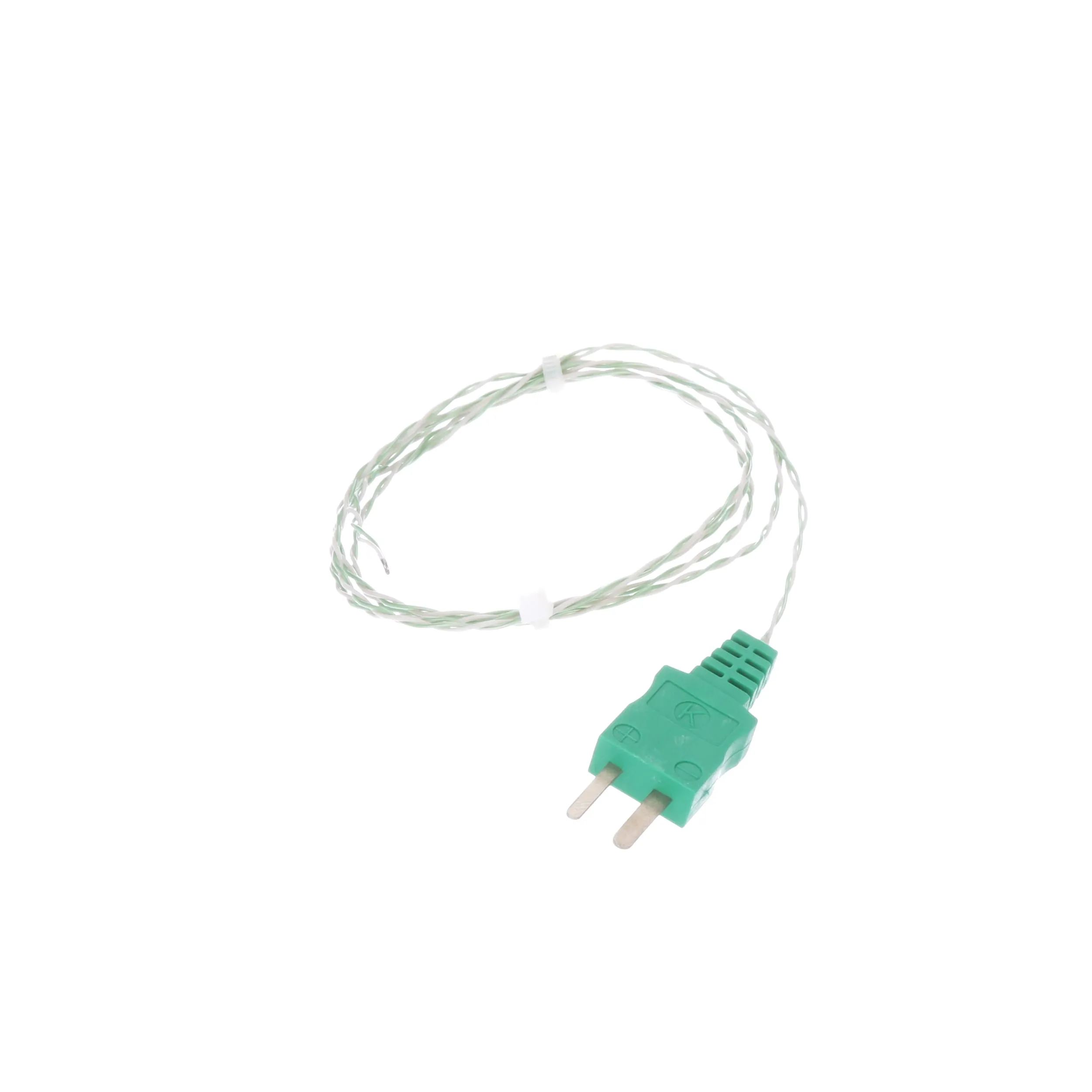

Exposed Junction Thermocouples
Various types of exposed junction thermocouples with fitted miniature plug and insulated leads, ideal for test and develoment applications.
Features and Benefits
Thermocouple types K, J and T;Fast response, welded exposed junction;Teflon PTFE insulated twin-twisted lead;IEC584 or ANSI MC96.1 Colour coded;Miniature flat pin plug;Tolerance Class 1 for optimum accuracy ;Ideal for test & development applications
