Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1045666 |
| Body Style | Cylinder |
| Configuration | T-slot |
| Connection Type | Cable with M8 male connector, 4-pin, 0.3 m (Do not bend below 0 °C) |
| Housing Material | Plastic |
| IP Rating | IP67 |
| Output Current | 4 mA ... 20 mA |
| Output Type | Analog |
| Sensing Range | ≥ 32 mm (± 1 mm) |
| Series | |
| Supply Voltage | 15 V DC ... 30 V DC |
| Type | Magnetic, Analog Positioning |
Overview

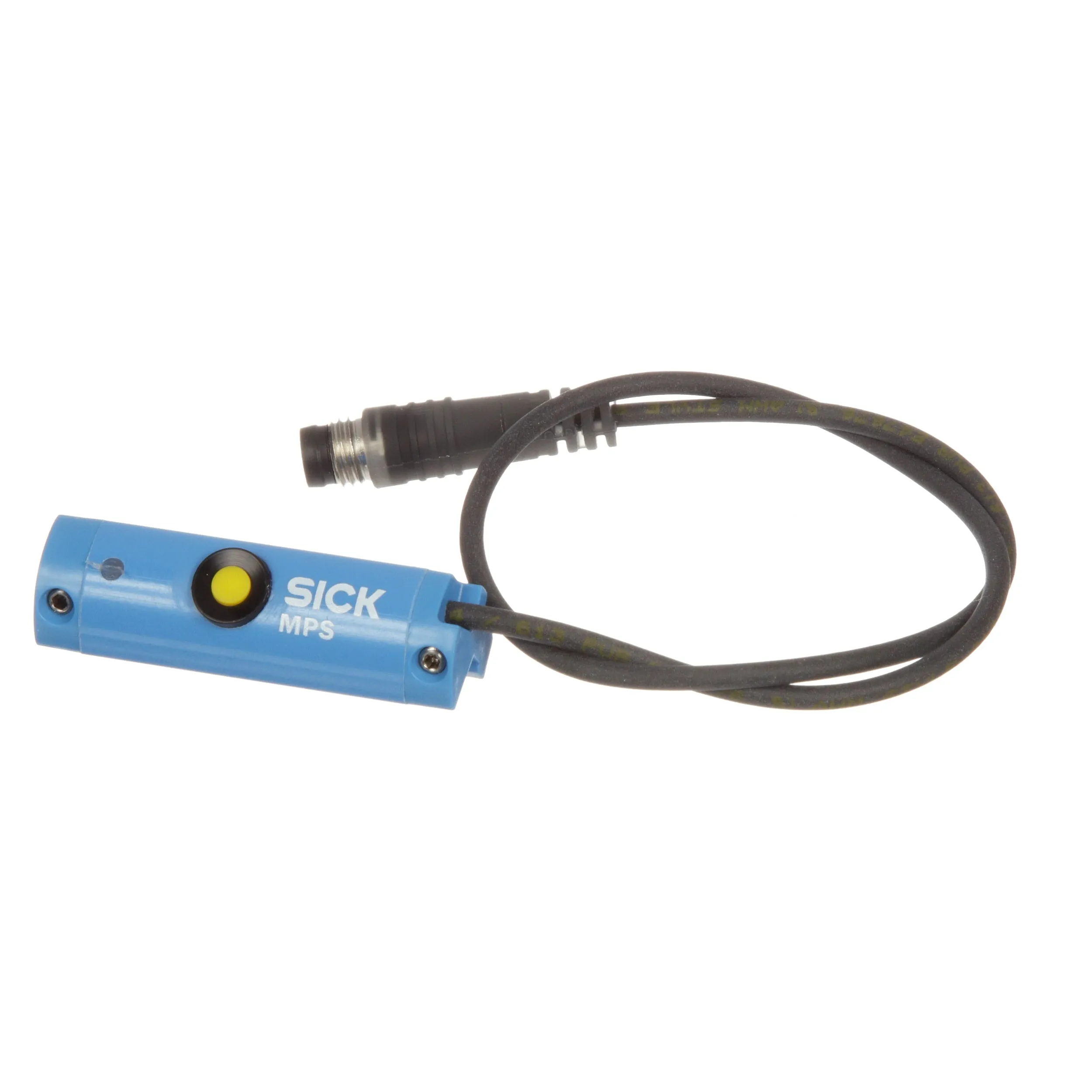

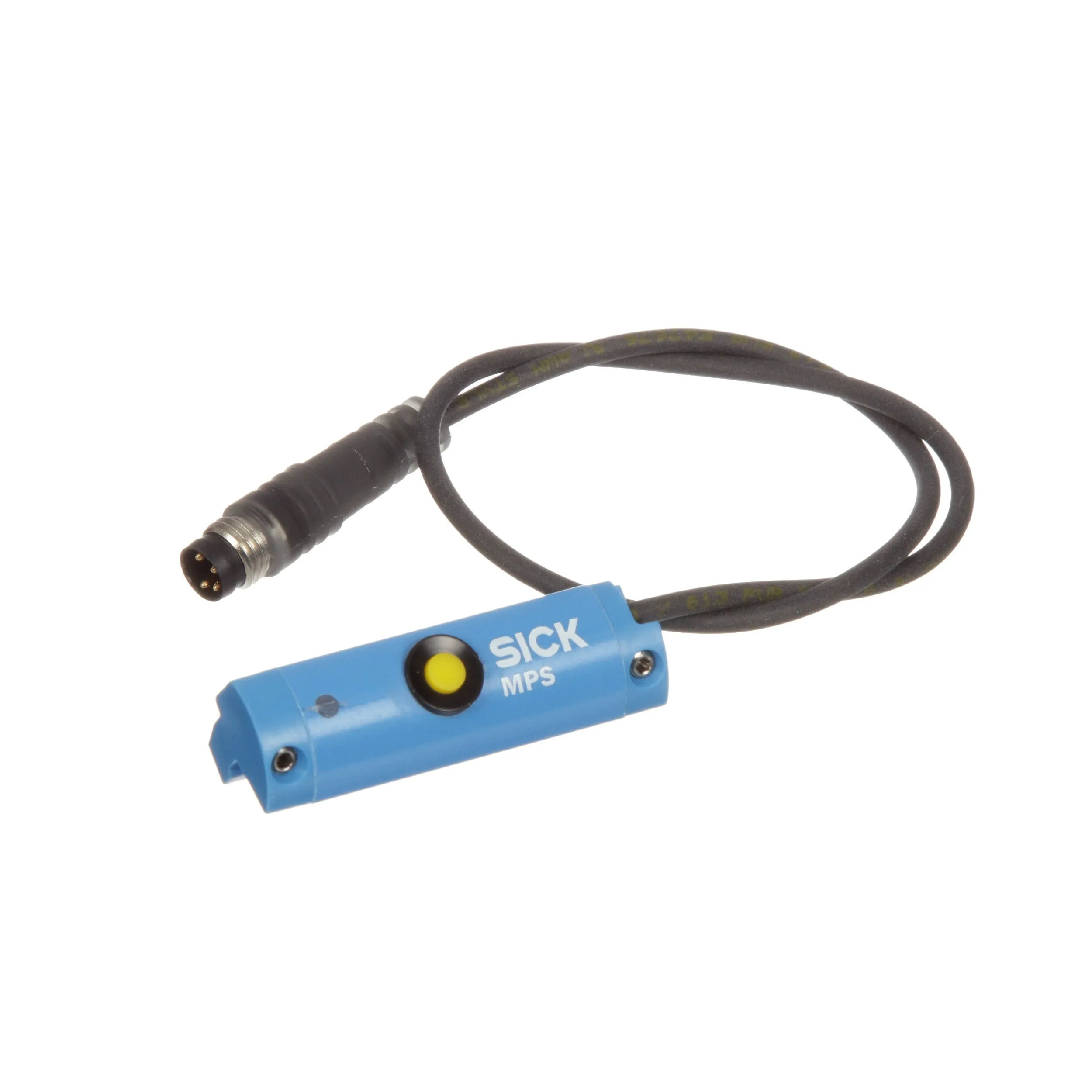

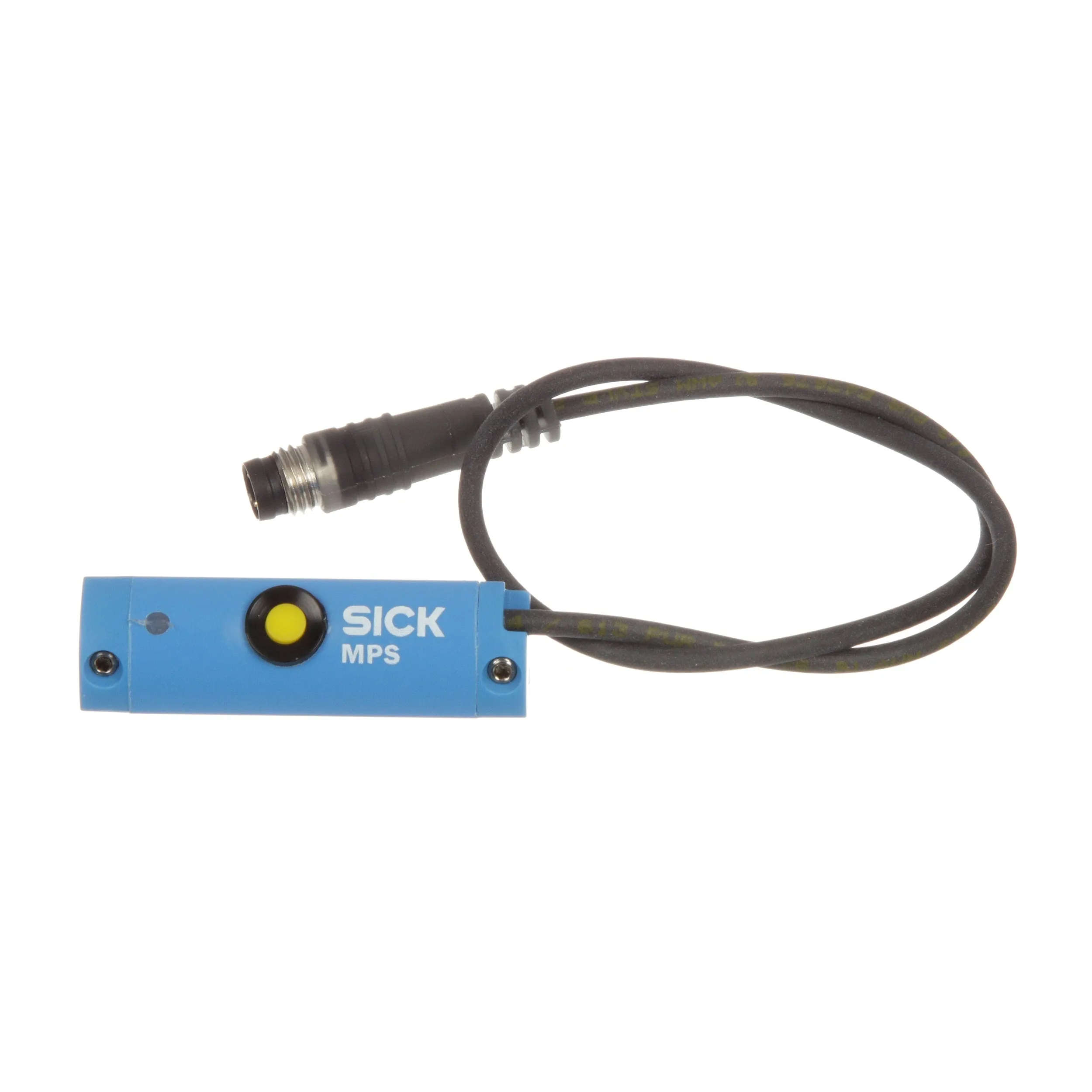

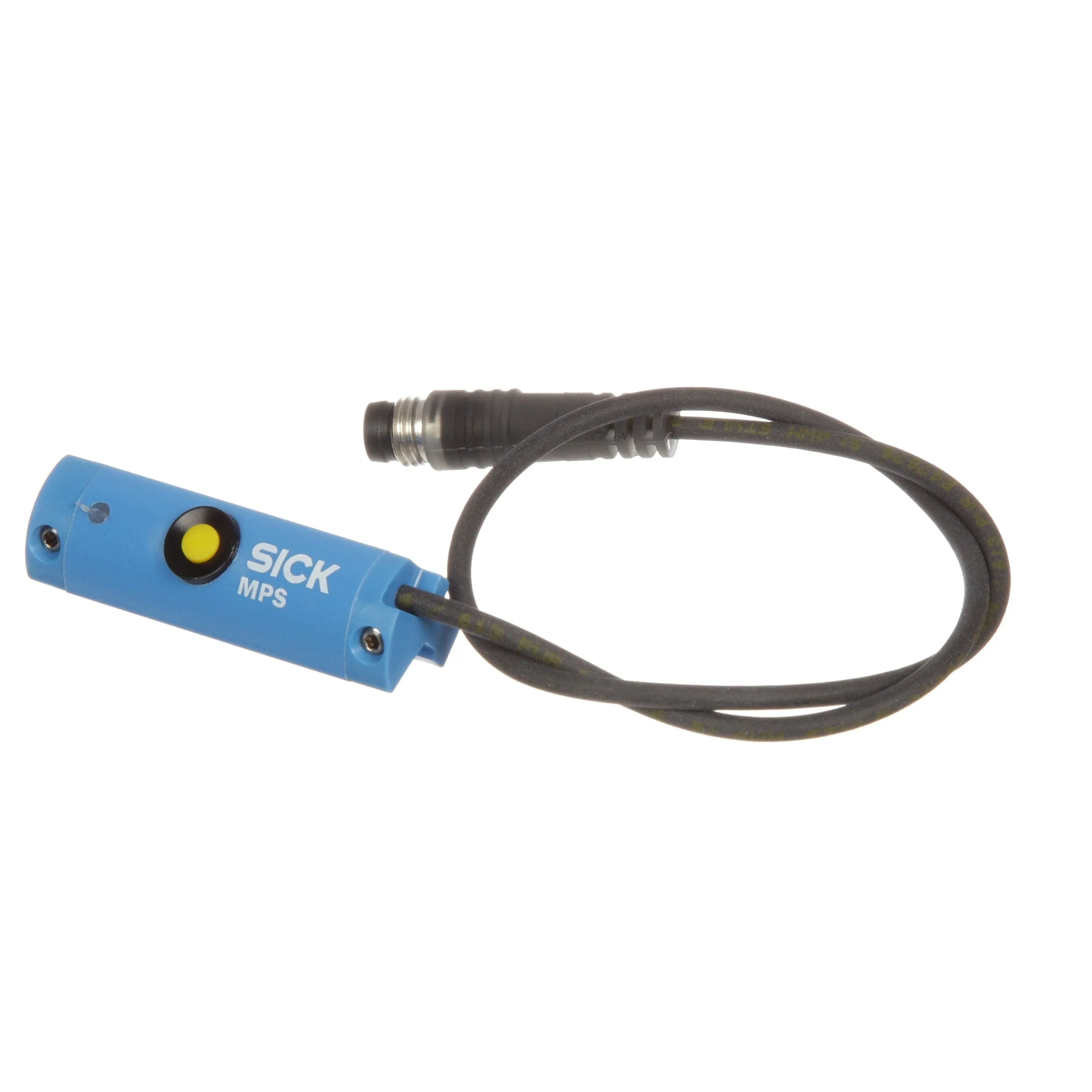

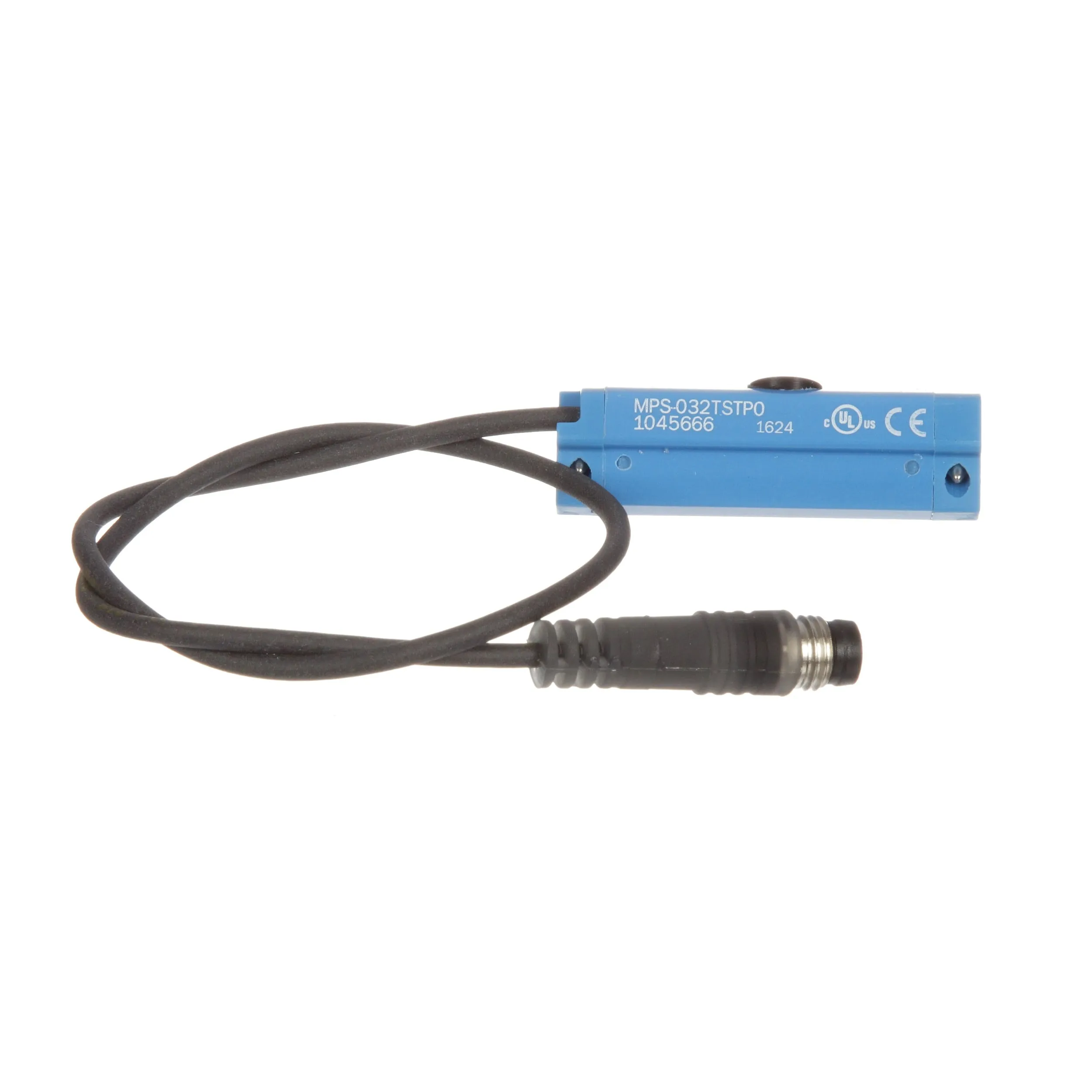

MPS - The superior analog sensor for T-slots
MPS analog position sensors extend the functional range for pneumatic and hydraulic cylinders. The wide spectrum of measuring ranges from 32 mm through 256 mm makes it possible to cover a wide variety of cylinders along their entire stroke. Output function, switching and measuring performance, and teaching functionalities open up a wide range of new applications that were previously not possible or only possible with cost-intensive systems.
