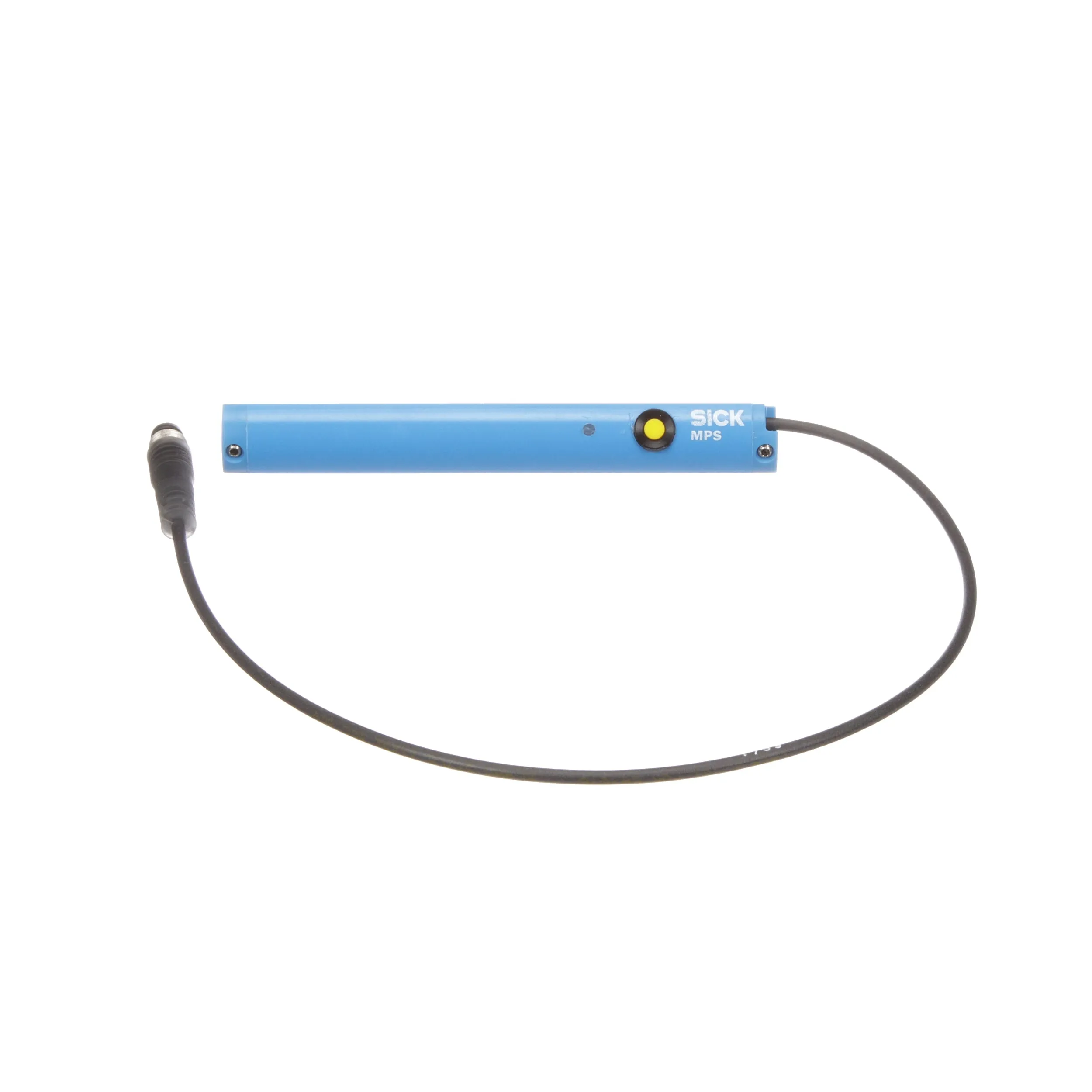

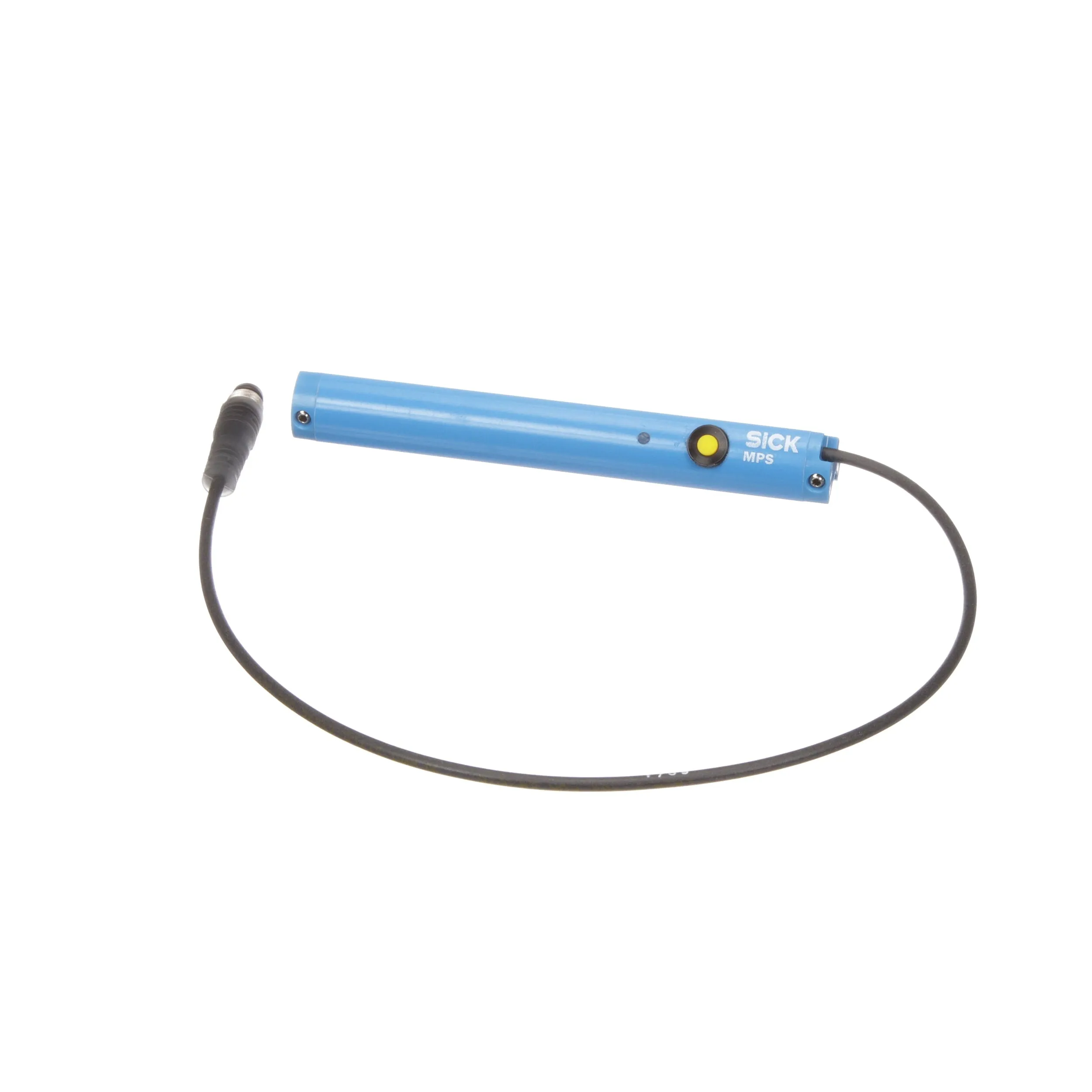

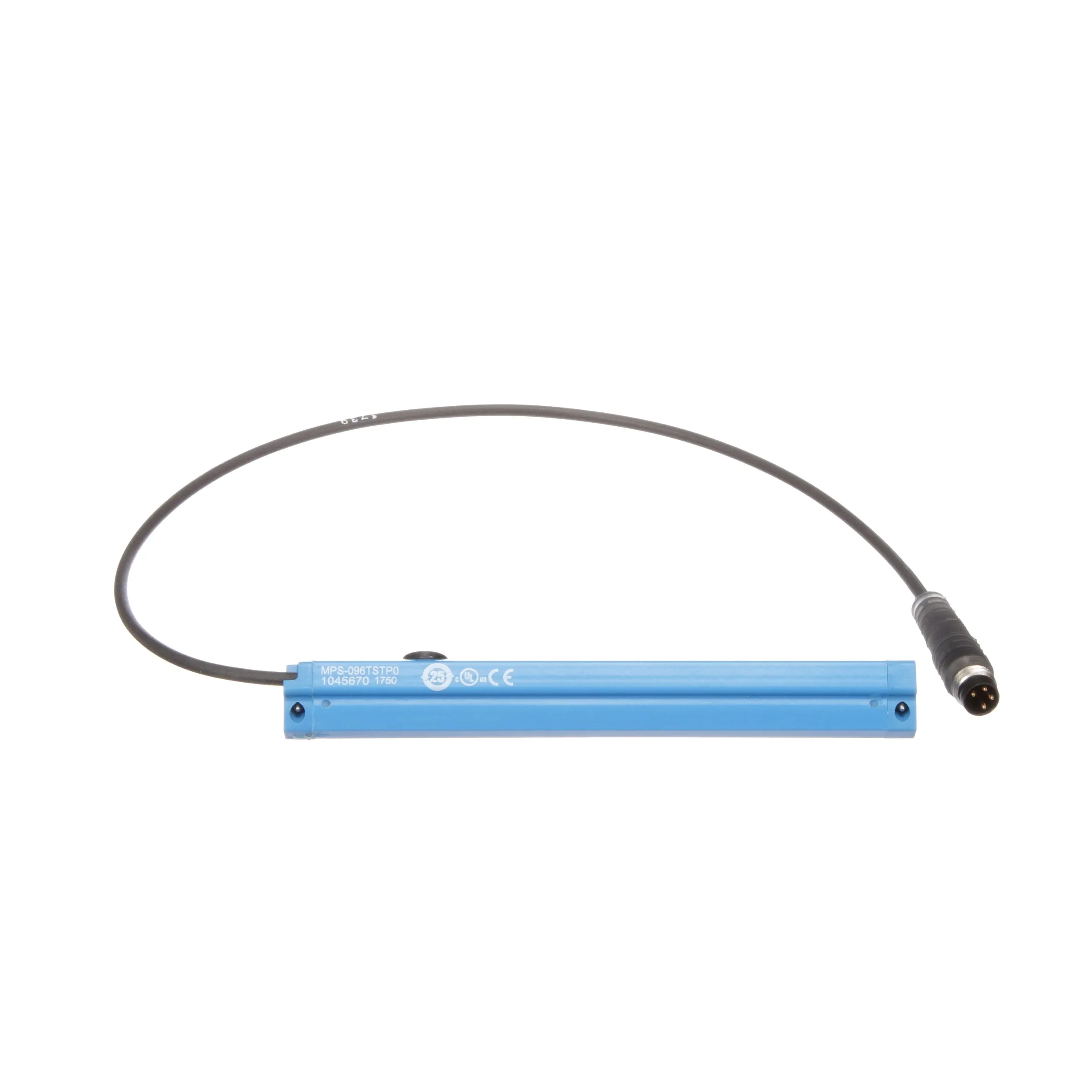

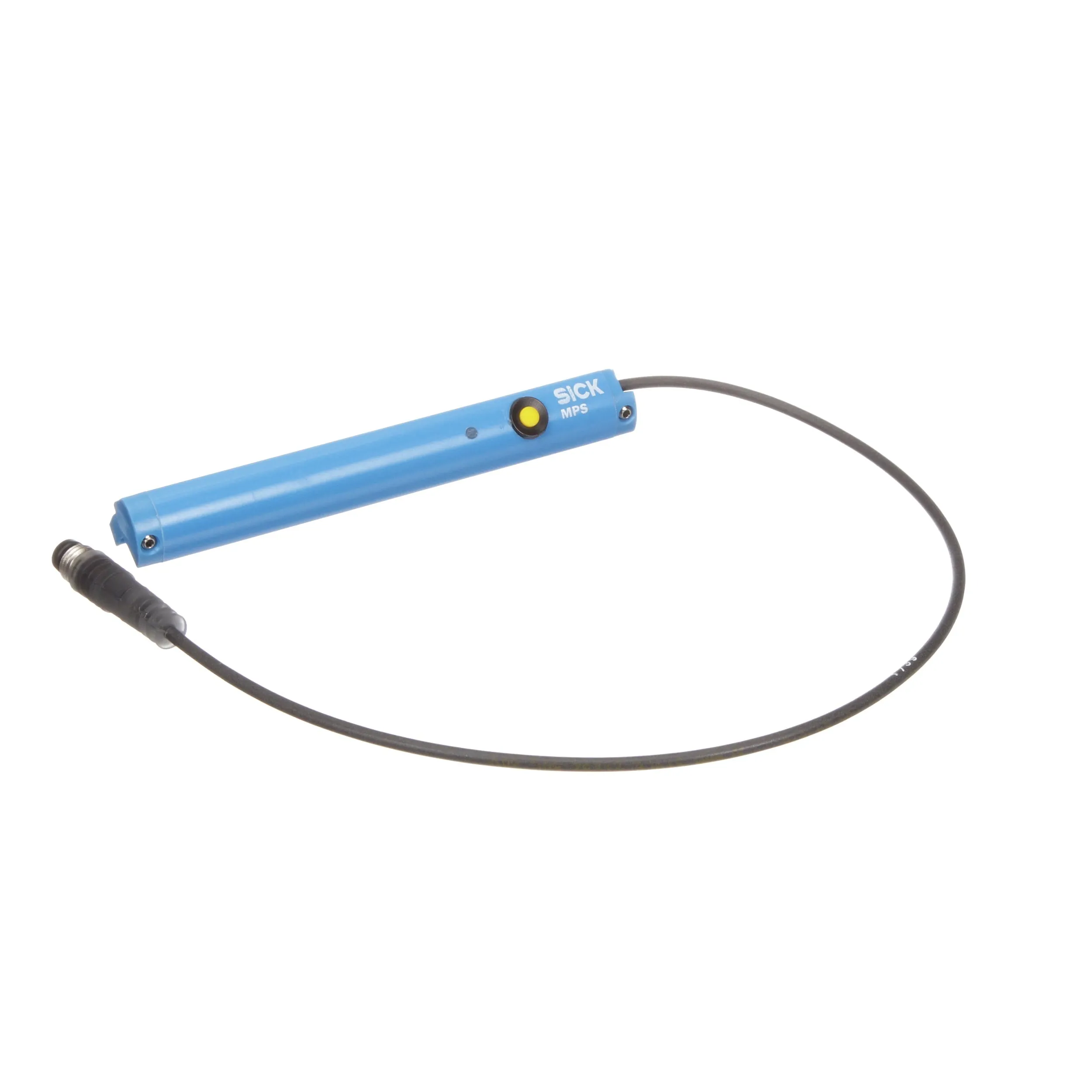

Name: SICK MPS-096TSTP0
SKU: 949005

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	1045670
Body Style	Cylinder
Configuration	T-slot
Connection Type	Cable with M8 male connector, 4-pin, 0.3 m (Do not bend below 0 °C)
Housing Material	Plastic
IP Rating	IP67
Output Current	4 mA ... 20 mA
Output Type	Analog
Sensing Range	≥ 96 mm (± 1 mm)
Series
Supply Voltage	15 V DC ... 30 V DC
Type	Magnetic, Analog Positioning

Overview

MPS - The superior analog sensor for T-slots
MPS analog position sensors extend the functional range for pneumatic and hydraulic cylinders. The wide spectrum of measuring ranges from 32 mm through 256 mm makes it possible to cover a wide variety of cylinders along their entire stroke. Output function, switching and measuring performance, and teaching functionalities open up a wide range of new applications that were previously not possible or only possible with cost-intensive systems.

At a Glance

Analog positioning sensor for pneumatic and hydraulic cylinders with T-slot

Measuring lengths from 32 mm through 256 mm in 32 mm increments

Output signals 4 mA to 20 mA as well as 0 V to 10 V in a single sensor

Superior accuracy: typ. resolution 0.05 mm, typ. repeatability 0.1 mm, typ. linearity 0.3 mm, typ. sampling rate 1 ms

Electric setting of zero point and end point via teach pushbutton (optional)
