Product Description

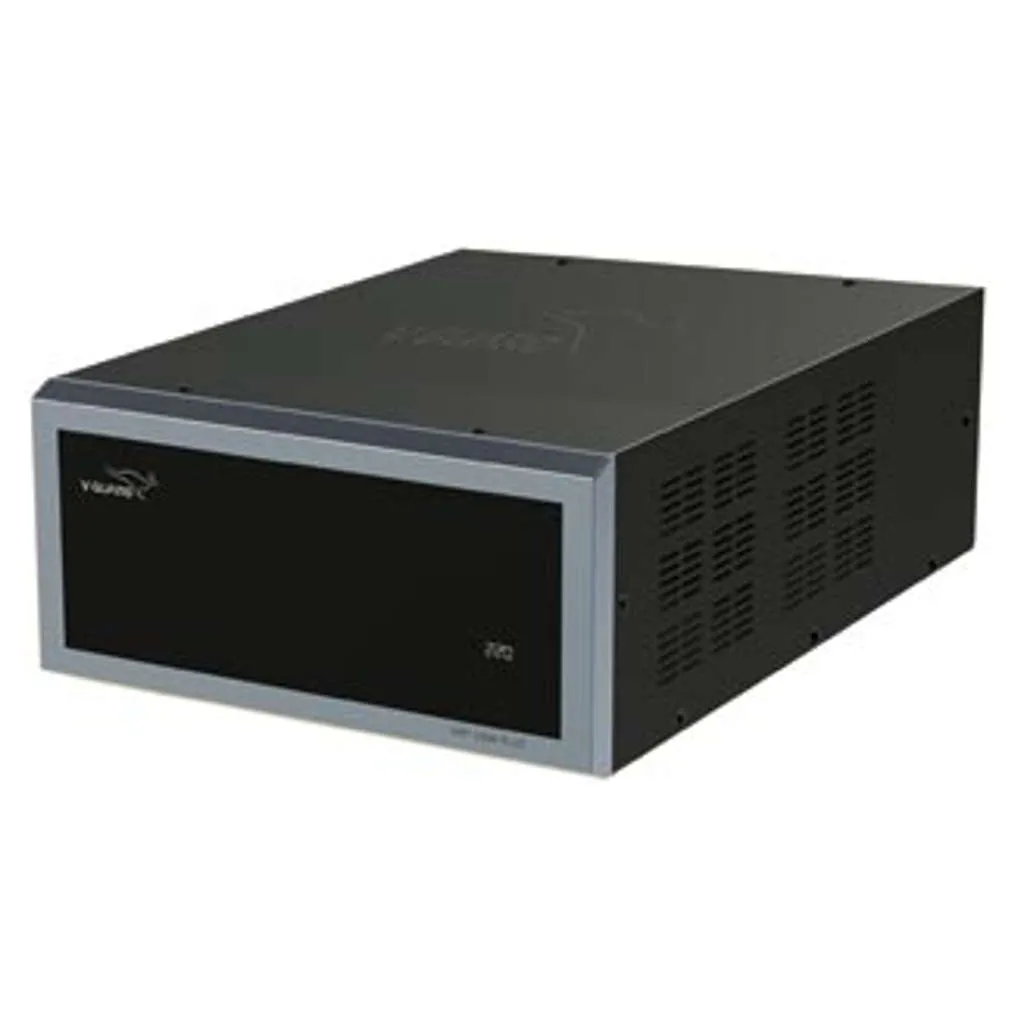

• The VMT 1000 Plus from V-Guard is a mainline stabilizer, used in the input power line to effectively ensure that the input voltage is stabilized and does not pass low/high voltages to the loads connected The stabilizer is equipped with a range of excellent technical features like a wide input range, under/over voltage protection, thermal overload protection, micro-controller based fail-safe circuit protection, safe start, etc, and can take loads up to 30A

• Wide Input Range

• The VMT 1000 Plus operates over a wide input operating voltage range of 110-500V, thus making it effective for use under unusual voltage conditions

• Under/Over Voltage Protection

• Electrical devices are designed to operate at a certain standard voltage in order for the product to achieve its specified level of performance, efficiency, safety and reliability

• Operating an electrical device above or below the specified voltage range can lead to serious problems

• The VMT 1000 Plus features a Low/High voltage protection function which protects the connected appliances from these types of failures

• Digital Display

• A seven-segment digital display indicates the present status of the stabilizer – the input voltage, output voltage, protection mode enabled like Low Voltage, High Voltage or Overload cutoff, etc

• This helps the user to understand the operating status of the stabilizer easily and to be reassured that the connected loads are working in a safe voltage range

• Thermal Overload Protection

• Under certain conditions, like a short-circuit for example, a component in any of the connected appliances may cause excessive current to be drawn through the stabilizer

• A thermal sensor in the stabilizer senses this overload condition and immediately disconnects the load to protect both the appliance and the stabilizer itself from further damage

• Microcontroller Based Fail-safe Protection

• The highly efficient micro-controller in the VMT 1000 Plus ensures that voltage correction is right at the start, between the source of the main supply and the distribution point, which is therefore far more effective, and ensures enhanced life of the connected appliance(s)

• Safe Start

• A unique Initial Time Delay function is built into the VMT 1000 Plus which delays the output by 4 to 6 seconds when the stabilizer is switched on or during frequent restarts, thus providing added safety for the connected appliances

Product Specification
