Description

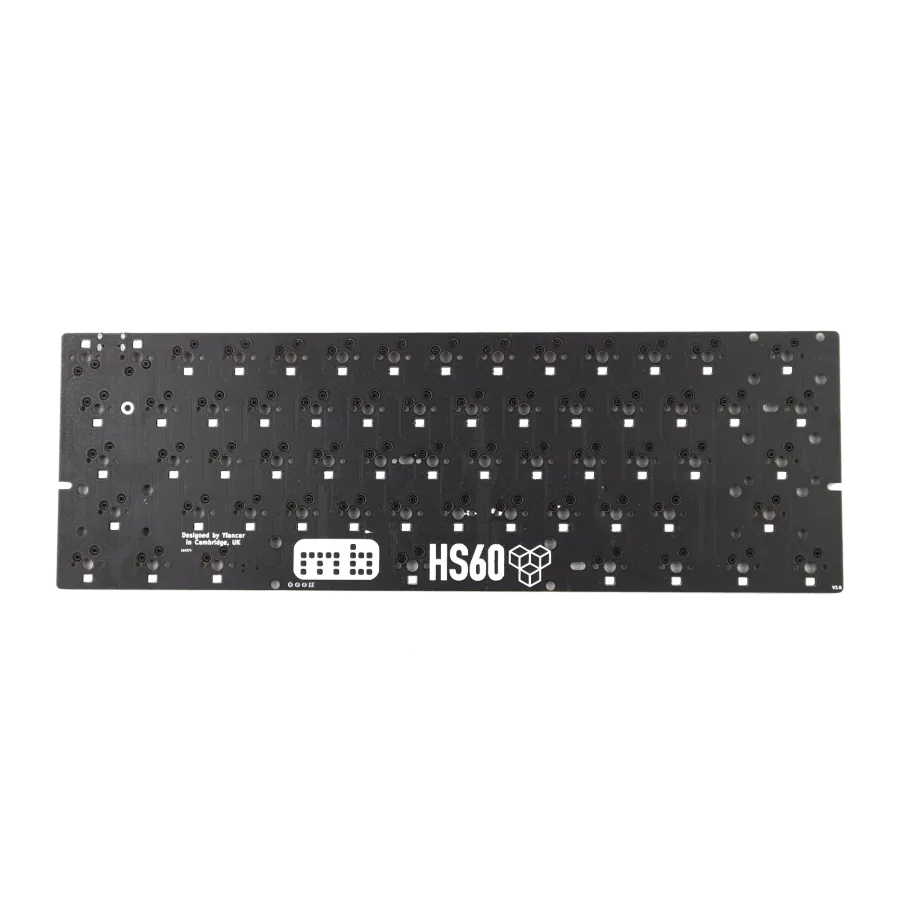

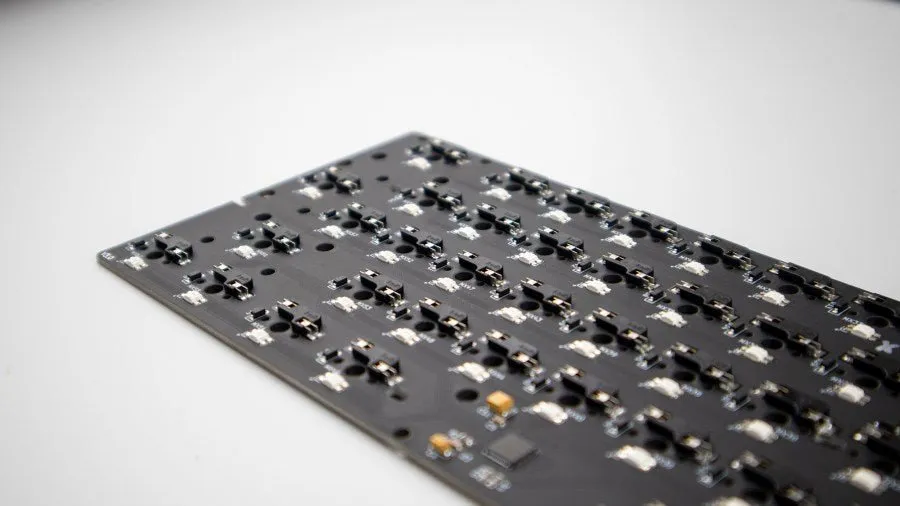

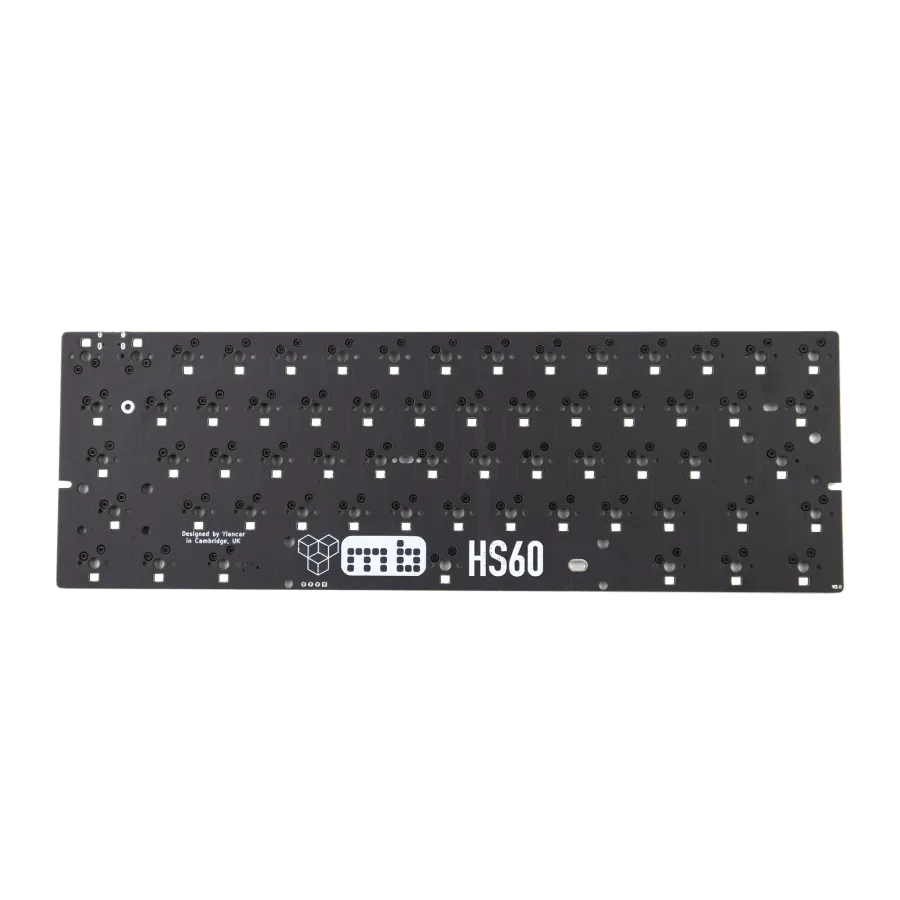

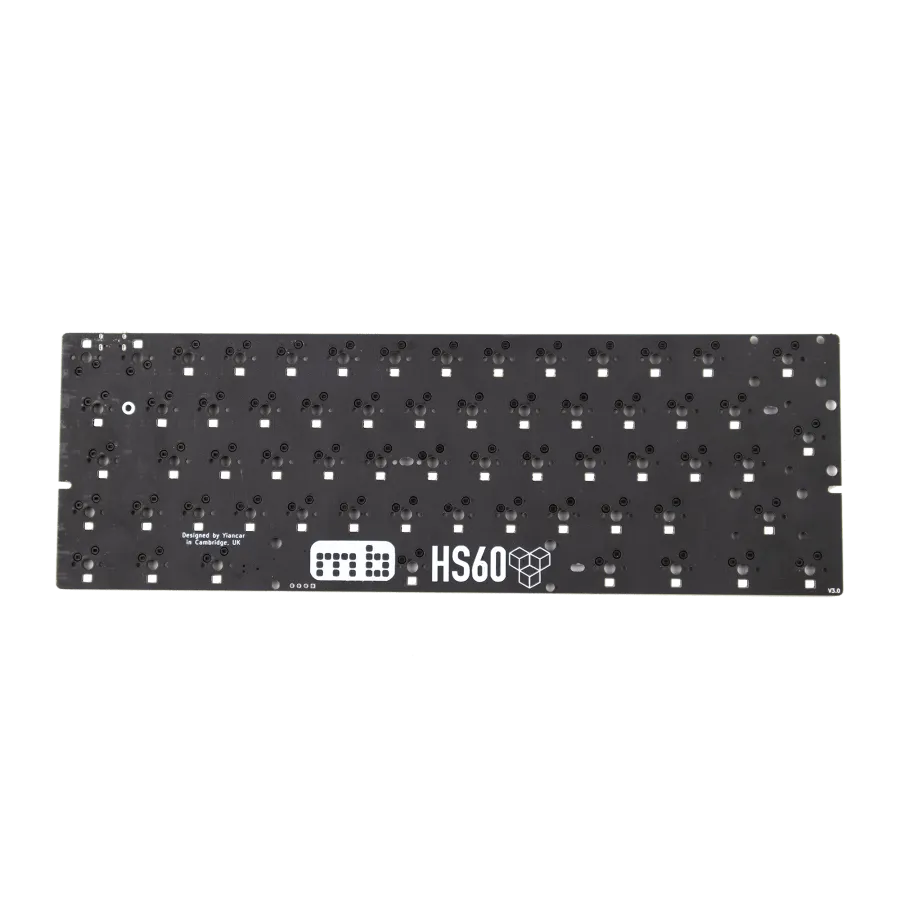

The HS60 is a 60% Hotswap PCB with everything you need ready to go! North-facing per-key LEDs and pins for underglow compatibility to really make your keyboard and switches shine.

Features
USB-C port
Kailh Hotswap Sockets
Options for ISO, ANSI or HHKB
No soldering required

Controller
STM32F303 - Arm Cortex M4 core

Firmware
QMK & VIA Compatible

Socket type
USB Type C

Size
Length - 285mm
Width - 95mm
Thickness - 5mm

Compatible Layouts

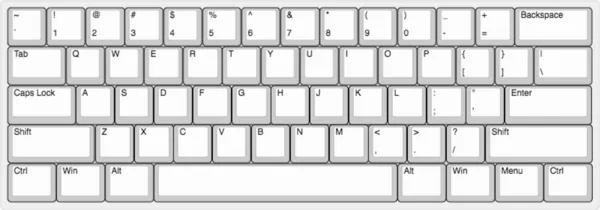

ANSI

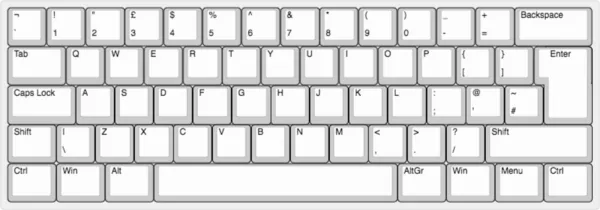

ISO

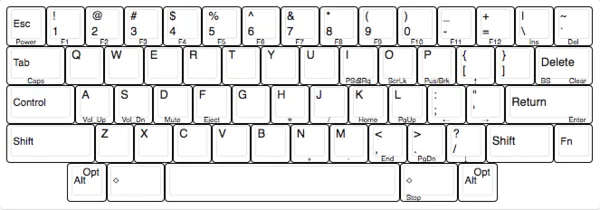

HHKB

Case Compatibility
Standard 60% mounting points

Lighting
South-facing per-key RGB LEDs
Options for Underglow LED strips (Requires soldering)

Required to Complete (ISO/ANSI/HHKB)
Switches x62/61/62
Keycaps x62/61/62
2u Stabilizers x3/4/2
6.25 Stabilizer x1
60% Case and Screws

Useful Links



Please Note: The firmware has not changed from the v2, you may find that it is called HS60v2 when plugged in.
